24V
31W
1.3A
85-264Vac
105 x 50 x 25.6 mm (Open Frame)
125 x 60 x 36 mm (Enclosed)
4.13" x 1.96" x 1.00” (Open Frame)
4.92" x 2.36" x 1.41" (Enclosed)
0.11 kg (Open Frame)
0.20 kg (Enclosed) (0.24 lb)

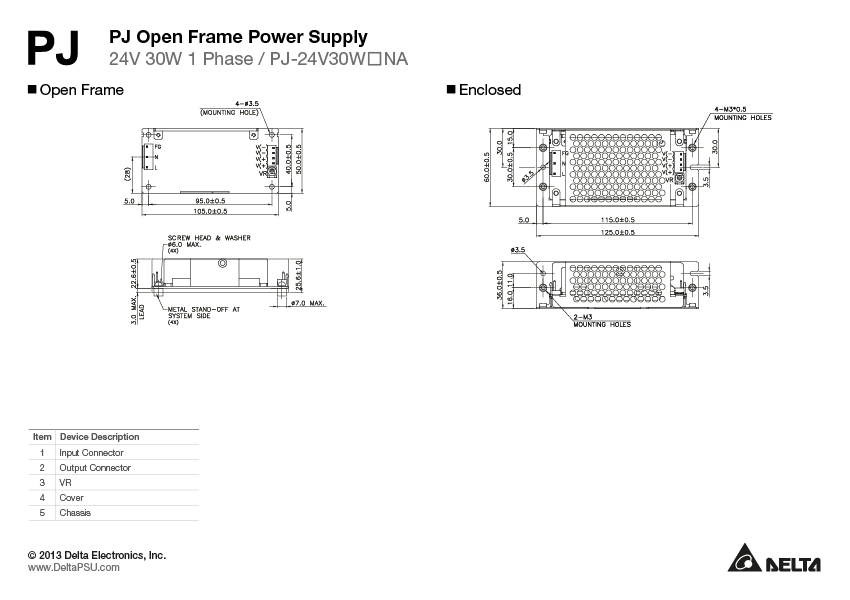

| Model | Description |
|---|---|
| PJ-24V30WBNA | Open Frame |
| PJ-24V30WLNA | L Frame |
| PJ-24V30WCNA | Enclosed |
24V
31W
1.3A
85-264Vac
105 x 50 x 25.6 mm (Open Frame)
125 x 60 x 36 mm (Enclosed)
4.13" x 1.96" x 1.00” (Open Frame)
4.92" x 2.36" x 1.41" (Enclosed)
0.11 kg (Open Frame)
0.20 kg (Enclosed) (0.24 lb)
| Model | Description |
|---|---|
| PJ-24V30WBNA | Open Frame |
| PJ-24V30WLNA | L Frame |
| PJ-24V30WCNA | Enclosed |
|
输出电流
1.3A
|
|
输出电压
24V
|
|
输出电压范围
|
|
输出电压调整范围
21.6-26.4Vdc
|
|
输出功率
31W
|
|
输出电流调整范围
|
|
最大输出电压
|
|
缓冲时间
-
|
|
线电压调整率
< 96mV
|
|
负载调整率
< 150mV
|
|
纹波电压
-
|
|
开机时间
500ms typ. @ 100Vac
|
|
保持时间
20ms Typ. @ 100Vac
|
|
动态回应
± 5% @ 0-50% load and 50-100% load
|
|
电容性负载启动
8,000µF Max
|
|
摇控开/关
-
|
|
保护设备
-
|
|
输入输出间电压骤降
-
|
|
残留波纹/PARD (20MHz)
-
|
|
残留波纹
-
|
|
最大功率
-
|
|
波纹与噪音
< 150mVpp @ 0°C to 50°C,
< 180mVpp @ -10°C to 0°C |
|
CC 型号 LED系统电压范围
-
|
|
升压时间
-
|
|
峰值功率持续时间
-
|
|
峰值功率回复时间
-
|
|
额定输入电压
100-240Vac
|
|
输入电压范围
85-264Vac
|
|
最大输入电压
-
|
|
额定输入频率
50-60Hz
|
|
输入频率范围
47-63Hz
|
|
额定直流输入电压
|
|
直流输入电压范围
-
|
|
输入电流
0.65Atyp. @100Vac,
0.35Atyp. @ 200Vac |
|
输入功率（待机模式）
-
|
|
100% 负载效率
85.0% typ. @ 100Vac,
86.0% typ. @ 200Vac |
|
最大涌入电流
15A typ. @ 100Vac,
30A typ. @ 200Vac |
|
充电时间
-
|
|
功率因数
-
|
|
漏电流
0.1mA @ 100Vac,
0.2mA @ 230Vac |
|
额定电流
-
|
|
谐波失真总量
-
|
|
最大功率损耗
-
|
|
效率 @ 10% 负载
-
|
|
底座 / 外壳上盖
SGCC
|
|
|
指示灯
-
|
|
|
冷却方式
Convection
|
|
|
输入端
-
|
|
|
输出端
-
|
|
|
信号端
-
|
|
|
声压级（SPL）
-
|
|
|
输入/输出端
JST B3P5-VH (LF)(SN)
|
|
|
信号
JST B4P-VH (LF)(SN)
|
|
|
安装导轨
-
|
|
|
电线
AWG 22-18
|
|
|
保护结构
-
|
|
|
端子台
-
|
|
|
重量
0.11 kg (Open Frame)
0.20 kg (Enclosed) (0.24 lb) |
尺寸
105 x 50 x 25.6 mm (Open Frame)
125 x 60 x 36 mm (Enclosed) 4.13" x 1.96" x 1.00” (Open Frame) 4.92" x 2.36" x 1.41" (Enclosed) |
|
振动测试（运行状态）
IEC 60068-2-6, 10 Hz to 55Hz @ 19.6 m/S² (2G); 60 min per axis for all X, Y, Z direction
|
|
防震测试（运行状态）
-
|
|
运行温度
-10°C to +70°C
|
|
储存温度
-25°C to +75°C
|
|
功率降级
>50°C de-rate power by 2.5% /°C, <90Vac de-rate power by 2%/V
|
|
运行湿度
5 to 90% RH (Non-Condensing)
|
|
防震测试（非运行状态）
IEC60068-2-27,196.1m/S² (20G), 11ms, once along X, Y, and Z axis
|
|
振动测试（非运行状态）
-
|
|
储藏湿度
-
|
|
运行高度
-
|
|
污染程度
-
|
|
碰撞试验（运行状态）
-
|
|
过压类别
-
|
|
Corrosion
-
|
|
过压保护
27.6-33.6V, Latch Mode
|
|
超负载/过电保护
> 105% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)
|
|
过热保护
Latch Mode
|
|
短路保护
Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)
|
|
极性反接保护
-
|
|
防护等级
-
|
|
防震保护
Class I with Primary Earth connection
|
|
输入端极性保护
-
|
|
电池极性保护
-
|
|
电池电压保护错误
-
|
|
深度放电保护
-
|
|
超负载保护
-
|
|
过电保护
-
|
|
内置保险丝
-
|
|
输入欠压保护
-
|
|
Safety Certificate
-
|
|
电气安全
TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881) CB scheme : IEC 60950-1, IEC 62368-1 |
|
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
|
|
医疗安全
-
|
|
电隔离
Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac Output to Ground: 0.5 KVac |
|
工业控制设备
-
|
|
危险场所/ATEX
-
|
|
II 3 G ATEX 2014/34/EU
-
|
|
机器电气设备
-
|
|
用於电率安装的电气设备
-
|
|
安全特低电压
-
|
|
海事
-
|
|
材料与部件
-
|
|
隔离电阻
-
|
|
PE 电阻
-
|
|
UKCA
In conformance with Electrical Equipment (Safety) Regulations 2016
and Electromagnetic Compatibility Regulations 2016 |
|
国家地区证书
-
|
|
BIS
-
|
|
KC
-
|
|
Electrical Equipment for Measurement, Control, and Laboratory Use
-
|
|
ITE Safety
-
|
|
SIL3
-
|
