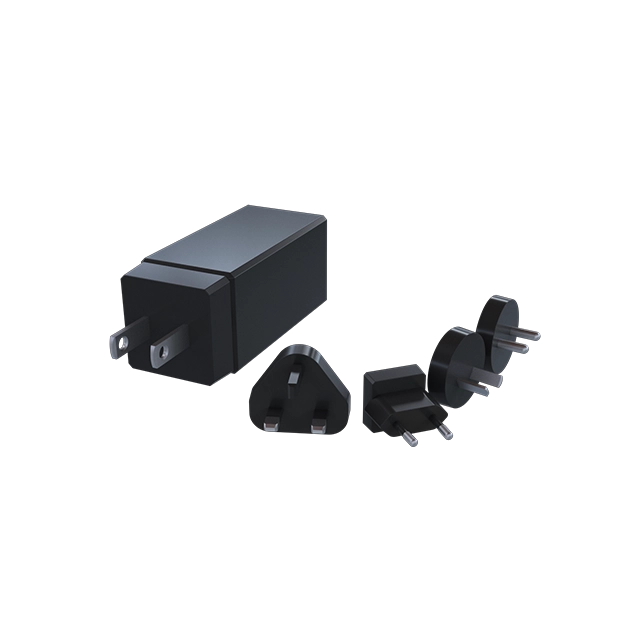

MEA-250A24C

Adapter

MEA Series

MEA-250A24C

Output Voltage

24V

Output Power

250W

Output Current

10.42A

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

200 x 100 x 43 mm

7.87” x 3.94” x 1.69”

Unit Weight

1.05 kg (2.31 lb)

Highlights & Features
  • Meet Efficiency Level VI
  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Compliant with IEC 60601-1-2 3th and 4th Ed. Requirements
  • IP22 ingress protection rating
  • 2 × MOPP isolation
  • Suited for Type BF Medical Products
Applications


MEA-250A24C
MEA-250A24C

Adapter

MEA Series

MEA-250A24C

Highlights & Features
  • Meet Efficiency Level VI
  • Safety Approvals to IEC 60601-1 & IEC 62368-1
  • Compliant with IEC 60601-1-2 3th and 4th Ed. Requirements
  • IP22 ingress protection rating
  • 2 × MOPP isolation
  • Suited for Type BF Medical Products
Output Voltage

24V

Output Power

250W

Output Current

10.42A

Input Voltage Range

90-264Vac

Dimensions

200 x 100 x 43 mm

7.87” x 3.94” x 1.69”

Unit Weight

1.05 kg (2.31 lb)

Applications

Download

Download

Datasheet

Uploaded on 01-Dec-2023

Manual

Uploaded on 22-Nov-2023


Uploaded on 22-Dec-2023

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 10-Nov-2021

.STP

Uploaded on 10-Nov-2021

CB

Uploaded on 18-Oct-2023

CCC

Uploaded on 22-Apr-2020

CE & UKCA

Uploaded on 25-Jun-2021

PSE

Uploaded on 22-Apr-2020

RCM

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Apr-2020

UL

Uploaded on 22-Apr-2020

Tech Specs

Tech Specs

Output Current
10.42A
Output Voltage
24V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
250W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
± 0.5%
Load Regulation
± 4.5%
PARD
-
Start-up Time
3000ms @ 115Vac
Hold-up Time
10ms @ 100Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 10% @ 0-50% & 50-100% load; Slew rate 0.25A/μs (@ 100Hz, 50% Duty Cycle)
Start-up with Capacitive Loads
-
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
-
LED System Voltage Range in CC Mode
-
Rise Time
-
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
100-240Vac
Input Voltage Range
90-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
4A @ 115Vac, 2A @ 230Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
-
Max Inrush Current
-
Charging Time
-
Power Factor at 100% load
-
Leakage Current
-
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
PC
Indicator
-
Cooling System
NA
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
1.05 kg (2.31 lb)
Dimensions
200 x 100 x 43 mm
7.87” x 3.94” x 1.69”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
5°C to +60°C
Storage Temperature
-40°C to +70°C
Power De-rating
> 40°C de-rate power by 2.5% / °C
Operating Humidity
10-95% RH (Non-Condensing)
Shock Test (Non-Operating)
50G, 11ms, 3 shocks for each direction
Vibration (Non-Operating)
5-500Hz, 2.09Grms, 20 minute for each three axis
Storage Humidity
-
Operating Altitude
5,000 meters (16,400 feet)
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
(max.)
120%, Latch Mode
Overload / Overcurrent
(max.)
150% of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)
Over Temperature
Hiccup Mode, (Non-Latching, Auto-Recovery)
Short Circuit
Hiccup Mode, (Non-Latching, Auto-Recovery)
Reverse Polarity Protection
-
Degree of Protection
IP22
Protection Against Shock
Class I
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
(typ.)
million Hours based on Telecordia SR-332 (at 115Vac, Max. load and 25°C Ambient)
Expected Cap Life Time
5 Years (115 Vac , 100% load @ 25°C)
Safety Certificate
-
Electrical Safety
IEC 60950-1 (Ed.2,2005), GB 4943.1-2011, GB 9254-2008, IEC 62368-1, GB 17625.1-2012, J 60950-1(H29)
UL 60950-1 (Ed.2 2014)
AS/NZS 60950-1 (2015)
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015
Medical Safety
IEC 60601-1 CB report
EN 60601-1
CAN/CSA-C22.2 No. 60601-1
ANSI/AAMI ES 60601-1
UL 60601-1
Galvanic Isolation
Input to Output: 4000Vac
Input to PE: 1500Vac
Output to PE: 500Vac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with Electrical Equipment (Safety) Regulations 2016, and Electromagnetic Compatibility Regulations 2016, Medical Devices Regulations 2002(UK MDR 2002)
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
IEC 60950-1, GB 4943.1, GB 9254
IEC 62368-1, GB 17625.1, J 60950-1 (H29)
UL 60950-1
AS/NZS 60950-1
SIL3
-
Emission
EN/BS EN 55011, EN/BS EN 55032, Compliance to FCC FCC Title 47: Class B
Immunity
IEC61000-4-2, IEC61000-4-3, IEC61000-4-4,IEC61000-4-5, IEC61000-4-6, IEC61000-4-8, IEC61000-4-11
Harmonic Current Emissions
IEC61000-3-2
Voltage Fluctuation and Flicker
IEC61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
