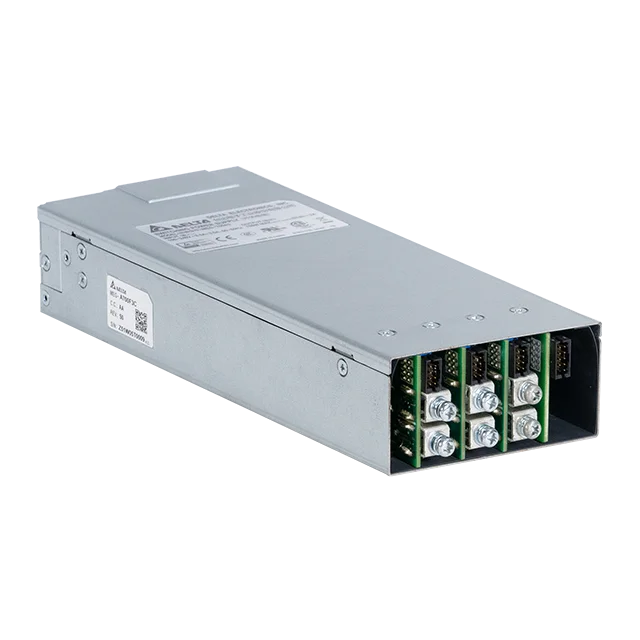

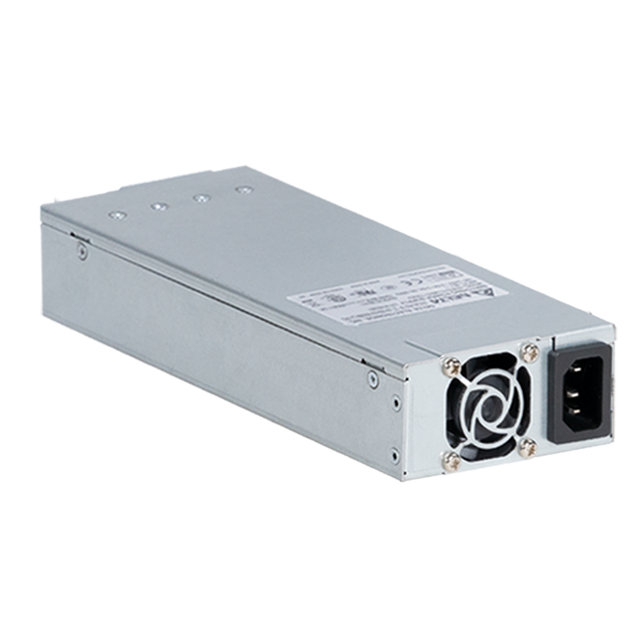

MEG-700A3

Configurable Power

MEG-A Series

MEG-700A3

Output Voltage

2-60V

Output Power

700W

Output Current

Input Voltage Range

90-264Vac

Dimensions (L x W x H)

215 x 88.9 x 41.5 mm

8.46” x 3.50” x 1.63”

Unit Weight

0.8kg (1.76 lb)

Highlights & Features
  • Up to 700W in 3.5” x 8.5” x 1.63” Package
  • Up to 14.5W/inch³ Power Density
  • Full Power up to 50°C Ambient
  • 3 Slots Modules Configurable
  • 2xMOPP Isolation for Medical Application
  • Output selectable from 2V to 60V
  • Current sharing for single slot modules
  • Class B Conducted and Radiated EMI
  • IEC 60601-1-2 4th edition immunity compliance
  • Normal and Reversed Option for Global Remote On/Off
  • Analog Voltage Trimming
  • Conformal coating on PCBAs to protect against common dust and pollutants
Applications
MEG-700A3
MEG-700A3

Configurable Power

MEG-A Series

MEG-700A3

Highlights & Features
  • Up to 700W in 3.5” x 8.5” x 1.63” Package
  • Up to 14.5W/inch³ Power Density
  • Full Power up to 50°C Ambient
  • 3 Slots Modules Configurable
  • 2xMOPP Isolation for Medical Application
  • Output selectable from 2V to 60V
  • Current sharing for single slot modules
  • Class B Conducted and Radiated EMI
  • IEC 60601-1-2 4th edition immunity compliance
  • Normal and Reversed Option for Global Remote On/Off
  • Analog Voltage Trimming
  • Conformal coating on PCBAs to protect against common dust and pollutants
Output Voltage

2-60V

Output Power

700W

Output Current

Input Voltage Range

90-264Vac

Dimensions

215 x 88.9 x 41.5 mm

8.46” x 3.50” x 1.63”

Unit Weight

0.8kg (1.76 lb)

Applications

Download

Download

Datasheet

Uploaded on 10-Nov-2023


Uploaded on 19-Dec-2023

Mechanical Drawing

Uploaded on 26-Mar-2021

.DXF

Uploaded on 26-Mar-2021

.STP

Uploaded on 26-Mar-2021

Manual & App Notes

Uploaded on 21-Jun-2023

CB

Uploaded on 08-Nov-2023

CCC

Uploaded on 10-Nov-2023

CE & UKCA

Uploaded on 06-Sep-2021

CSA

Uploaded on 22-Oct-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 22-Oct-2020

UL

Uploaded on 26-Oct-2020

GUI Program

Uploaded on 04-Jul-2024

Tech Specs

Tech Specs

Output Current
Output Voltage
2-60V
Output Voltage Range
Output Voltage Adjustment Range
-
Output Power
700W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
±0.5%
Load Regulation
±1%
PARD
-
Start-up Time
3000ms @ 115Vac
Hold-up Time
12ms @ rated load, with nominal input range 400W @200Vac/240Vac for SEMI F47
Dynamic Response (Overshoot & Undershoot O/P Voltage)
±5% @ with 50-100% load change
Start-up with Capacitive Loads
Single Slot Single Output Module：1500uF on each load
Triple Slot Single Output Module：2800uF on each load
Single Slot Dual Output Module：1000uF on each load
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
1% pk-pk Vrated or 100mV, which is greater
LED System Voltage Range in CC Mode
-
Rise Time
100ms
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
100-240Vac
Input Voltage Range
90-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
8.5
Input Power (Standby Mode)
-
Efficiency at 100% load
91% @ 115Vac/60Hz
93% @ 230Vac/50Hz
Max Inrush Current
40A @ 230Vac, cold start
Charging Time
-
Power Factor at 100% load
>0.95 @ 115V/50Hz, 230V/50Hz, full load
Leakage Current
-
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
SGCC
Indicator
-
Cooling System
-
Input Terminal
-
Output Terminal
-
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
-
Protection Structure
-
Terminal
-
Unit Weight
0.8kg (1.76 lb)
Dimensions
215 x 88.9 x 41.5 mm
8.46” x 3.50” x 1.63”
Vibration (Operating)
-
Shock Test (Operating)
-
Operating Temperature
Absolute Maximum/Minimum Rating. -20°C to +70°C.
Storage Temperature
-40°C to +85°C
Power De-rating
50% power under 70°C
Operating Humidity
5-95% RH (Non-Condensing)
Shock Test (Non-Operating)
50G, 11ms, 3 shocks for each direction
Vibration (Non-Operating)
5-500Hz, 2Grms, 15 minutes for each three axis
Storage Humidity
-
Operating Altitude
Up to 5,000 meters (up to 16,400 feet or 106-54kPa)
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
Latch off. Reset by recycling AC In
110% to 130% rated module output voltage range
Overload / Overcurrent
Hiccup Mode (Non-Latching, Auto-Recovery) Up to 950W power for 5 seconds operation
Over Temperature
Latch off
Short Circuit
Hiccup Mode (Non-Latching, Auto-Recovery)
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
-
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
>500kHrs based on Telecordia SR-332
Expected Cap Life Time
-
Safety Certificate
-
Electrical Safety
IEC60950-1 CB report
IEC62368-1 CB report
TUV EN 62368-1
UL 62368-1 and CAN/CSA C22.2 No. 62368-1
CCC GB 17625.1; GB 4943.1; GB/T 9254.1
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015
Medical Safety
IEC60601-1 2nd and 3rd+A1 edition CB report
TUV EN60601-1:2006
ANSI/AAMI ES 60601-1+CAN/CSA-C22.2 No.60601-1: (Ed.3.2005)
Galvanic Isolation
Input to Output (2xMOPP): 4000 Vac
Input to Ground (1xMOPP): 1768 Vac
Output to Ground: 500 Vac (Type B application rated)
Output to Output: 500 Vac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with Electrical Equipment (Safety) Regulations 2016
and Electromagnetic Compatibility Regulations 2016,
Medical Devices Regulations 2002(UK MDR 2002)
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
EN/BS EN 55011, EN/BS EN 55032,
FCC Title 47:Class B
Immunity
-
Harmonic Current Emissions
IEC61000-3-2 Meet Class A limit
Voltage Fluctuation and Flicker
IEC61000-3-3
ESD Immunity
IEC61000-4-2
Radiated Immunity
IEC61000-4-3
IEC60601-1-2
EFT
IEC61000-4-4
Surge
IEC61000-4-5
Conducted Immunity
IEC61000-4-6
Magnetic Field
IEC61000-4-8
Voltage Dips
IEC61000-4-11
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-

Looking for support for this product?

Looking for support for this product?

Related Products

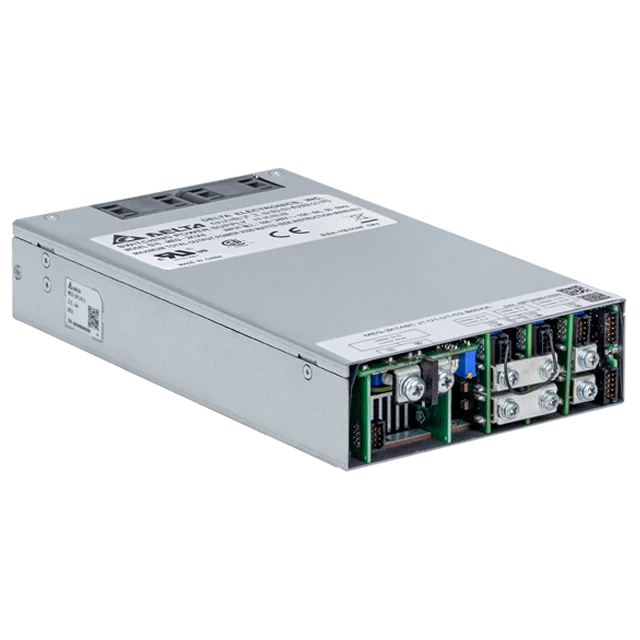

MEG-2K1A6
