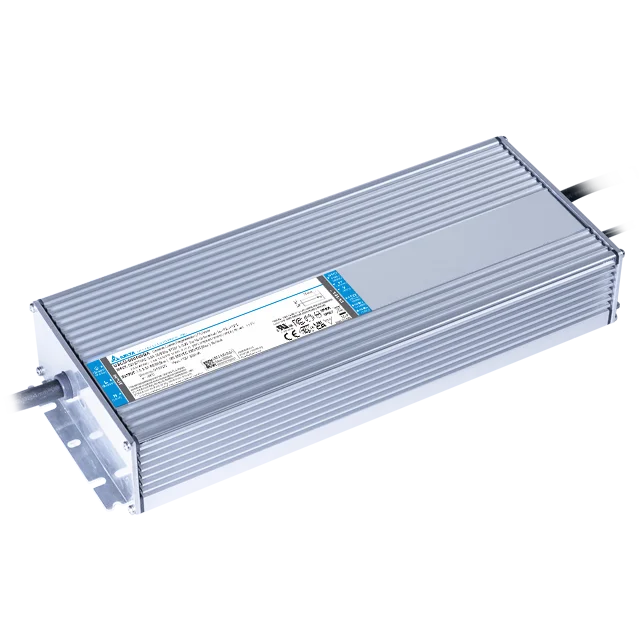

USCO-600400GA

LED Driver

USCO PRO Series

USCO-600400GA

Output Voltage

150-300V

Output Power

600W

Output Current

1-3A

Input Voltage Range

108-305Vac

Dimensions (L x W x H)

308 x 116.7 x 50.8 mm

12.13” x 4.59” x 2.00”

Unit Weight

3.05 (6.61 lb)

Highlights & Features

Wide range constant current design
Universal AC input voltage from 120-277Vac
High efficiency up to 95%
Wide operating temperature range -40°C to +55°C
With IP66/IP67 protection from most outdoor applications
Build-in Active PFC and confirm to harmonic current IEC/EN 61000-3-2, Class C
Adjustable constant current level through programmable tool
Common mode 6kV/ differential mode 6kV surge immunity
Suitable for Dry / Damp / Wet location
0-10V dimming available

Applications

LED Driver

USCO PRO Series

USCO-600400GA

Highlights & Features

Wide range constant current design
Universal AC input voltage from 120-277Vac
High efficiency up to 95%
Wide operating temperature range -40°C to +55°C
With IP66/IP67 protection from most outdoor applications
Build-in Active PFC and confirm to harmonic current IEC/EN 61000-3-2, Class C
Adjustable constant current level through programmable tool
Common mode 6kV/ differential mode 6kV surge immunity
Suitable for Dry / Damp / Wet location
0-10V dimming available

Output Voltage

150-300V

Output Power

600W

Output Current

1-3A

Input Voltage Range

108-305Vac

Dimensions

308 x 116.7 x 50.8 mm

12.13” x 4.59” x 2.00”

Unit Weight

3.05 (6.61 lb)

Applications

Tech Specs

Output Current

1-3A

Output Voltage

150-300V

Output Voltage Range

150-300Vdc

Output Power

600W

Output Current Adjustment Range

1-3A

Max Output Voltage

380Vdc

Line Regulation

± 1% (@ 120-277Vac input)

Load Regulation

± 3% (@ Min-Max output voltage)

Start-up Time

1000ms max. @ 120-277Vac (full load)

Nominal Input Voltage

120-277Vac

Input Voltage Range

108-305Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Input Current

5.8A @120Vac

Input Power (Standby Mode)

0.5W @ Dim to off, 230Vac

Efficiency at 100% load

120Vac: 93.0%@2000mA
230Vac: 94.8%@2000mA
277Vac: 95.0%@2000mA

Max Inrush Current

120Vac: 8A/8.3mS
230Vac: 15A/8.3mS
277Vac: 18A/8.3mS

Power Factor at 100% load

> 0.99 @120Vac full load,
> 0.98 @ 230Vac full load
> 0.98 @ 277Vac Full Load,
> 0.95 @ 120/230/277Vac&> 50% Load

Total Harmonic Distortion

THD < 20% with load ≥ 50% at 120/230/277Vac input Leakage Current

Case Chassis / Cover Aluminum
Indicator -
Cooling System Convection
Input Terminal Line: Brown, Neural: Blue, PE: Yellow/Green, Cable Length 300mm
Output Terminal Positive: Brown, Negative: Blue, Cable Length 300mm; NTC/PRG: Black, Cable Length 280mm
Signal Terminal -
Noise Sound Pressure Level (SPL) < 24dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 3.05 (6.61 lb)	Dimensions 308 x 116.7 x 50.8 mm 12.13” x 4.59” x 2.00”

Operating Temperature

-40°C to +45°C For North America
-40°C to +55°C For European Union/Europe

Storage Temperature

-40°C to +85°C

Operating Humidity

10 to 90% RH (Non-Condensing)

Storage Humidity

5 to 95% RH (Non-Condensing)

Overvoltage

380Vpeak
Auto-Recovery when the fault is removed

Overload / Overcurrent

Reduce output current. Auto-Recovery when the fault is removed

Over Temperature

Latch，reboot by input on/off 20 times or programing output current to 0

Short Circuit

Auto-Recovery when the fault is removed

MTBF

50,000 hours at case temp. tc & full load. Refer to “Lifetime VS Case Temperature”

Expected Cap Life Time

+70°C

Electrical Safety

IEC 61347-1, IEC 61347-2-13 (independent)
EN 61347-1, EN 61347-2-13
UL 8750, type “HL” & type “TL”

In conformance with EMC Directive and Low Voltage Directive

Galvanic Isolation

Earth (Case): 1554Vac
Output/PROG: 3000Vac
DIM ± & +12V: 4242Vdc

Emission

(CE & RE)
Compliance to EN 55015 Class B; 47 CFR FCC Part 15, Subpart B, Class B

Immunity

Compliance to EN 61547

Harmonic Current Emissions

IEC 61000-3-2 Class C (230Vac @ ≥ 50% load)

Voltage Fluctuation and Flicker

IEC 61000-3-3
