Industrial Power Panel Mount DIN Rail Open Frame Configurable Power Adapter Modules
Medical Power Open Frame Enclosed Adapter Configurable Power
LED Driver CC + CV Mode CC Mode CV Mode

PJ-12V150W

Open Frame

PJ Series

PJ-12V150W

Output Voltage

12V

Output Power

150W

Output Current

12.5A

Input Voltage Range

85-264Vac

Dimensions (L x W x H)

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

Unit Weight

0.30 kg (Open Frame)
0.51 kg (Enclosed) (0.66 lb)

Highlights & Features
  • Universal AC Input (85Vac - 264Vac)
  • Low Inrush Current / Low Leakage Current
  • High efficiency and PF factor to conserve energy
  • Conforms to harmonic current IEC/EN 61000-3-2, Class D
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Remote ON/OFF (Optional for 150W)
  • Versatile configuration options: Open Frame, L Frame, Enclosed
  • Long life capacitors


Model Description
PJ-12V150WBNA Open Frame
PJ-12V150WBRA Open Frame, remote ON/OFF
PJ-12V150WLNA L Frame
PJ-12V150WLRA L Frame, remote ON/OFF
PJ-12V150WCNA Enclosed
PJ-12V150WCRA Enclosed, remote ON/OFF
Applications


PJ-12V150W
PJ-12V150W

Open Frame

PJ Series

PJ-12V150W

Highlights & Features
  • Universal AC Input (85Vac - 264Vac)
  • Low Inrush Current / Low Leakage Current
  • High efficiency and PF factor to conserve energy
  • Conforms to harmonic current IEC/EN 61000-3-2, Class D
  • Conformal coating on PCBA to protect against chemical and dust pollutants
  • Remote ON/OFF (Optional for 150W)
  • Versatile configuration options: Open Frame, L Frame, Enclosed
  • Long life capacitors


Output Voltage

12V

Output Power

150W

Output Current

12.5A

Input Voltage Range

85-264Vac

Dimensions

160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)

Unit Weight

0.30 kg (Open Frame)
0.51 kg (Enclosed) (0.66 lb)

Applications
Model Description
PJ-12V150WBNA Open Frame
PJ-12V150WBRA Open Frame, remote ON/OFF
PJ-12V150WLNA L Frame
PJ-12V150WLRA L Frame, remote ON/OFF
PJ-12V150WCNA Enclosed
PJ-12V150WCRA Enclosed, remote ON/OFF

Download

Download

Datasheet

Uploaded on 23-Mar-2023

Manual

Uploaded on 22-Apr-2020


Uploaded on 25-Dec-2023

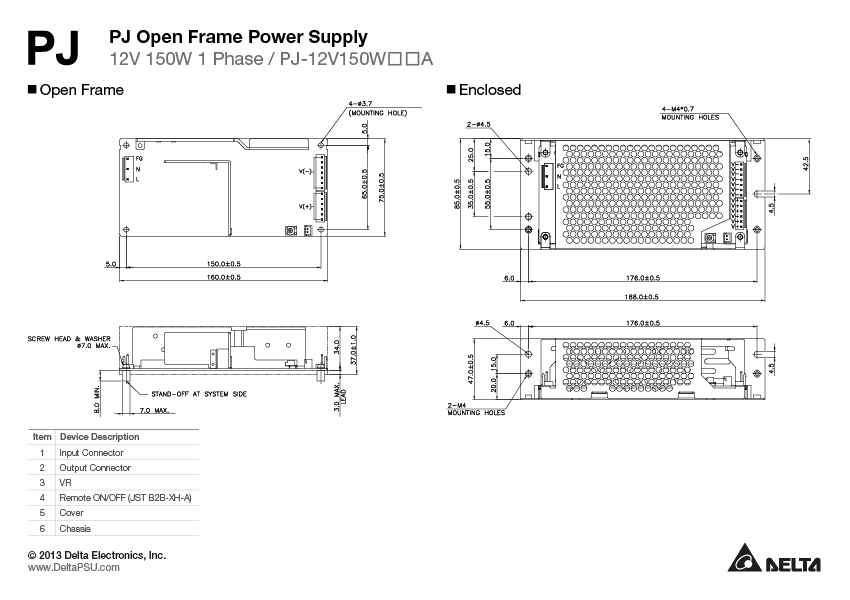

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

CE & UKCA

Uploaded on 07-Jul-2021

CSA

Uploaded on 23-Nov-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 24-May-2022

UL

Uploaded on 22-Apr-2020

Tech Specs

Tech Specs

Output Current
12.5A
Output Voltage
12V
Output Voltage Range
Output Voltage Adjustment Range
10.8-13.2Vdc
Output Power
150W
Output Current Adjustment Range
Max Output Voltage
Buffering Time
-
Line Regulation
< 48mV
Load Regulation
< 100mV
PARD
-
Start-up Time
500ms typ. @ 100Vac
Hold-up Time
20ms typ. @ 100Vac
Dynamic Response (Overshoot & Undershoot O/P Voltage)
± 5% @ 0-50% load and 50-100% load (Slew Rate: 0.1A/µS)
Start-up with Capacitive Loads
6,000µF Max
Remote ON/OFF
-
Protective Device
-
Voltage Drop Between Input and Output
-
Residual Ripple/PARD (20MHz)
-
Residual Ripple
-
Max. Power
-
Ripple & Noise
< 150 mVpp @ 0°C to 50°C,
< 180 mVpp @ -10°C to
LED System Voltage Range in CC Mode
-
Rise Time
-
Power Boost Duration
-
Power Boost Recovery Time
-
Nominal Input Voltage
100-240Vac
Input Voltage Range
85-264Vac
Max Input Voltage
-
Nominal Input Frequency
50-60Hz
Input Frequency Range
47-63Hz
Nominal DC Input Voltage
DC Input Voltage Range
-
Input Current
1.90A typ. @ 100Vac,
0.95A typ. @ 200Vac
Input Power (Standby Mode)
-
Efficiency at 100% load
88.0% typ. @ 100Vac,
91.0% typ. @ 200Vac
Max Inrush Current
15A typ. @ 100Vac,
30A typ. @ 200Vac
Charging Time
-
Power Factor at 100% load
0.99 typ. @ 100Vac, 0.97 typ. @ 200Vac
Leakage Current
0.2mA @ 100Vac,
0.4mA @ 230Vac
Nominal Current
-
Total Harmonic Distortion
-
Max Power Dissipation
-
Efficiency @ 10% load
-
Case Chassis / Cover
SGCC
Indicator
-
Cooling System
Convection
Input Terminal
JST B3P5-VH (LF)(SN)
Output Terminal
V–: JST B7P-VH (LF)(SN), V+: JST B6P-VH (LF)(SN)
Signal Terminal
-
Noise Sound Pressure Level (SPL)
-
Input/Output Terminal
-
Signal
-
Mounting Rail
-
Wire
AWG 22-18
Protection Structure
-
Terminal
-
Unit Weight
0.30 kg (Open Frame)
0.51 kg (Enclosed) (0.66 lb)
Dimensions
160 x 75 x 37 mm (Open Frame)
188 x 85 x 47 mm (Enclosed)
6.29" x 2.95" x 1.45" (Open Frame)
7.40" x 3.34" x 1.85" (Enclosed)
Vibration (Operating)
IEC 60068-2-6, 10 Hz to 55 Hz @ 19.6 m/S² (2 G); 3 min period, 60 min per axis for all X, Y, Z direction
Shock Test (Operating)
-
Operating Temperature
-10°C to +70°C
Storage Temperature
-25°C to +75°C
Power De-rating
> 50°C de-rate power by 2% /°C,
< 90Vac de-rate power by 2% / V
Operating Humidity
5 to 90% RH (Non-Condensing)
Shock Test (Non-Operating)
IEC60068-2-27, 196.1m/S² (20G),11ms, once along X, Y, and Z axis
Vibration (Non-Operating)
-
Storage Humidity
-
Operating Altitude
-
Pollution Degree
-
Bump Test (Operating)
-
Over Voltage Category
-
Corrosion
-
Overvoltage
13.8-16.8V, Latch Mode
Overload / Overcurrent
> 105% of rated load current, Hicc-up Mode, Non-Latching (Auto-Recovery)
Over Temperature
Latch Mode
Short Circuit
Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)
Reverse Polarity Protection
-
Degree of Protection
-
Protection Against Shock
Class I with Primary Earth connection
Input Polarity Protection
-
Battery Polarity Protection
-
Wrong Battery Voltage Protection
-
Deep Discharge Protection
-
Overload
-
Overcurrent
-
Internal Fuse
-
Insufficient Input Voltage Protection
-
MTBF
> 200,000 hrs. as per JEITA RCR-9102B
Expected Cap Life Time
10 years (115Vac, 50% load @ 40°C)
Safety Certificate
-
Electrical Safety
TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL Recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E131881)
cCSAus: CAN/CSA C22.2 No. 62368-1 and ANSI/UL 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1
CE
In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
Medical Safety
-
Galvanic Isolation
Input to Output: 3.0 KVac
Input to Ground: 2.0 KVac
Output to Ground: 0.5 KVac
Industrial Control Equipment
-
Hazardous Location / ATEX
-
II 3 G ATEX 2014/34/EU
-
Electrical Equipments of Machines
-
Electrical Equipment for Use in Electrical Power Installations
-
Safety Entry Low Voltage
-
Maritime
-
Material and Parts
-
Isolation Resistance
-
PE Resistance
-
UKCA
In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016
Certificates for Other Countries
-
BIS
-
KC
-
Electrical Equipment for Measurement, Control, and Laboratory Use
-
ITE Safety
-
SIL3
-
Emission
CISPR 32, EN/BS EN 55032, Comply with FCC Title 47: Class B
Immunity
EN/BS EN 55024
Harmonic Current Emissions
IEC/EN/BS EN 61000-3-2, Class D
Voltage Fluctuation and Flicker
IEC/EN/BS EN 61000-3-3
ESD Immunity
-
Radiated Immunity
-
EFT
-
Surge
-
Conducted Immunity
-
Magnetic Field
-
Voltage Dips
-
Component Power Supply for General Use
-
Nominal Battery Voltage
-
Battery Voltage Range
-
Battery Capacity
-
Battery Charging Mode
-
End of Charge Voltage
-
Battery Fuse
-
Battery Discharging Voltage Range
-
Battery Charging Current
-
Battery Current Consumption
-
Discharging Current
-
Recommended Charging Voltage
-
