Delta PMC-24V600W1BA 24V 600W 25A Panel Mount PMC Series

Download

Datasheet

Uploaded on 05-Jul-2022

Manual

Uploaded on 11-Jun-2020


Uploaded on 26-Dec-2023

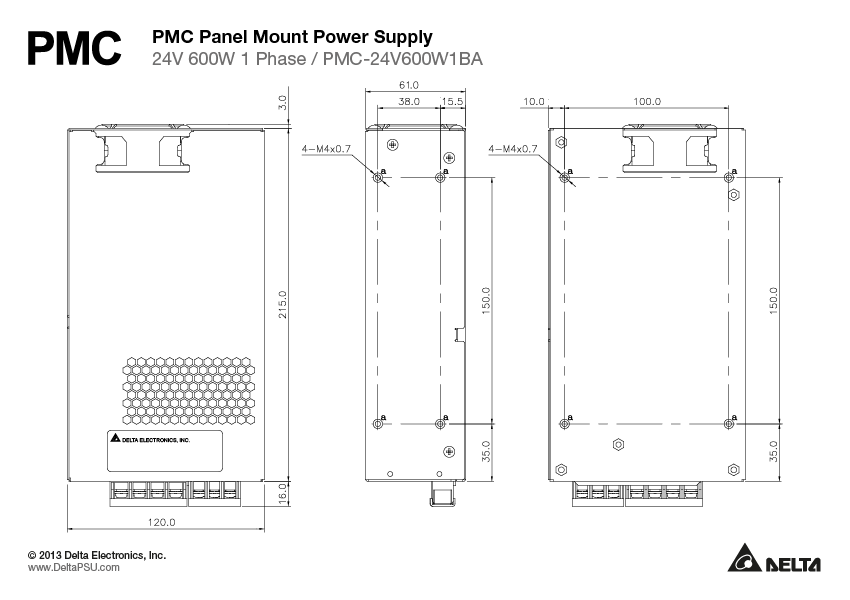

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

Certificates

Uploaded on 26-Nov-2020

Uploaded on 02-Dec-2022

EAC

Uploaded on 22-Apr-2020

Uploaded on 30-Jul-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 26-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 30-Jul-2021

Uploaded on 26-Nov-2020

GUI Software

Tech Specs

Output Current

25A

Output Voltage

24V

Output Voltage Adjustment Range

21.6-26.4Vdc

Output Power

600W

Line Regulation

< 0.4% typ. (@ 115 & 240Vac input, 100% load)

Load Regulation

< 0.625% typ. (@ 115 & 240Vac input, 100% load)

PARD

< 180mVpp @ 0°C to 50°C,
< 240mVpp @ -20°C to 0°C

Start-up Time

< 800ms @ 230Vac (100% load)

Hold-up Time

> 20ms @ 115Vac & 230Vac (100% load)

Dynamic Response (Overshoot & Undershoot O/P Voltage)

± 5% @ 0-50% load and 50-100% load

Start-up with Capacitive Loads

10,000μF Max

Nominal Input Voltage

100-240Vac

Input Voltage Range

85-264Vac

Nominal Input Frequency

50-60Hz

Input Frequency Range

47-63Hz

Nominal DC Input Voltage

142-340Vdc

DC Input Voltage Range

120-370Vdc

Input Current

< 6.50A @ 115Vac,
< 3.20A @ 230Vac

Efficiency at 100% load

> 86.0% @ 115Vac, > 89.0% @ 230Vac

Inrush Current

< 20A @ 115Vac,
< 40A @ 230Vac

Power Factor at 100% load

> 0.99 @ 115Vac,
> 0.94 @ 230Vac

Leakage Current

< 1.5mA

Case Chassis / Cover SECC
Indicator 1.60 kg (3.53 lb) Green LED (DC OK)
Cooling System Forced Cooling (Built-in Fan)
Input Terminal 3 Pins (Rated 300V/20A)
Output Terminal 4 Pins (Rated 300V/25A)
Signal Terminal -
Noise Sound Pressure Level (SPL) < 52dBA
Input/Output Terminal -
Signal -
Mounting Rail -
Wire -
Protection Structure -
Terminal -
Unit Weight 1.60 kg (3.53 lb)	Dimensions 215 x 120 x 61 mm 8.46” x 4.72” x 2.40”

Operating Temperature

-20°C to +70°C

Storage Temperature

-20°C to +75°C

Power De-rating

> 50°C de-rate power by 2.5% / °C,
< 115Vac de-rate power by 0.67% / 1V

Operating Humidity

20-90% RH

Shock Test (Non-Operating)

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 times per direction, 2 times in total

Vibration (Non-Operating)

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

Pollution Degree

Overvoltage

27.6-33.6V, SELV Output, Latch-off Mode

Overload / Overcurrent

> 180% of rated load @ Vin ≥115Vac, Hicc-up Mode, Non-Latching (Auto-Recovery)

Over Temperature

< 70°C Surrounding Air Temperature @ 100% load, Latch-off Mode

Short Circuit

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

Protection Against Shock

Class I with Primary Earth connection

MTBF

> 300,000 hrs. as per Tel cordia SR-332

Expected Cap Life Time

10 years (115Vac & 230Vac, 50% load @ 40°C)

Electrical Safety

SIQ Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1, UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

Galvanic Isolation

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

Safety Entry Low Voltage

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K 60950-1

Emission

(CE & RE)
Generic Standards: CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47, VCCI*: Class B

Immunity

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

Harmonic Current Emissions

IEC/EN/BS EN 61000-3-2, Class A

Voltage Fluctuation and Flicker

IEC/EN/BS EN 61000-3-3
