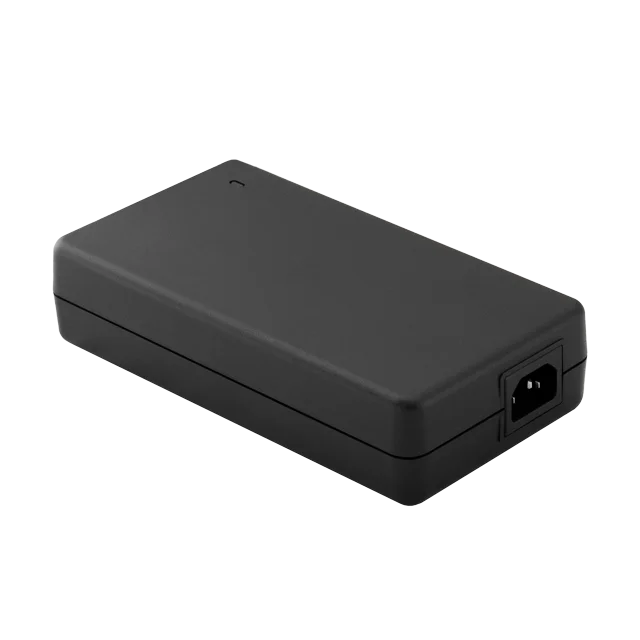

Delta MEA-090A12C 12V 81W 6.75A Adapter MEA Series

Model	Description
MEA-090A12C 6-A	C14, 4 Pin DIN
MEA-090A12C V-A	C14, tuning fork 90°

Model	Description
MEA-090A12C 6-A	C14, 4 Pin DIN
MEA-090A12C V-A	C14, tuning fork 90°

资源下载

Datasheet

Uploaded on 01-Dec-2023

Manual

Uploaded on 22-Nov-2023


Uploaded on 18-Dec-2023

Mechanical Drawing

Uploaded on 27-Oct-2022

.DXF

Uploaded on 27-Oct-2022

.STP

Uploaded on 16-Dec-2021

认证

Uploaded on 18-Oct-2023

CCC

Uploaded on 09-Dec-2021

CE & UKCA

Uploaded on 09-Dec-2021

PSE

Uploaded on 09-Dec-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 09-Dec-2021

TSCA

Uploaded on 15-Nov-2023

Uploaded on 09-Dec-2021

GUI Software

Tech Specs

输出电流

6.75A

输出电压

12V

输出功率

81W

线电压调整率

± 0.5%

负载调整率

± 4.5%

开机时间

< 3000 ms @ 115 Vac & 230 Vac

保持时间

20 ms @ 115 Vac & 230 Vac

动态回应

± 5% @ 0-50% & 50-100% load; Slew rate 0.25 A/µs (@ 100 Hz, 50% Duty Cycle)

波纹与噪音

升压时间

< 50 ms @ 115 Vac & 230 Vac

额定输入电压

100-240 Vac

输入电压范围

90-264 Vac

额定输入频率

50-60 Hz

输入频率范围

47-63Hz

输入电流

1.5 A @ 115 Vac, 0.75 A @ 230 Vac

输入功率（待机模式）

0.15 W @ 115 Vac & 230 Vac

最大涌入电流

50 A @ 115 Vac and 100 A @ 230 Vac

漏电流

0.1 mA @ 264 Vac NC1), 0.5 mA @ 264 Vac Single fault condition

底座 / 外壳上盖 PC
指示灯 Green LED
冷却方式 -
输入端 IEC 60320 C14 socket
输出端 Tuning Fork type: 5.5 x 2.5 x 11 mm, 90° (for MEA-090A□C V-A) 4 Pin Din type, 180° (for MEA-090A□C 6-A) Tuning Fork type: 5.5 x 2.5 x 11 mm, 180° (for MEA-090A□C W-A)
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.31 kg (0.68 lb)	尺寸 135 x 62 x 32 mm 5.31” x 2.44” x 1.26”

运行温度

-10°C to +60°C

储存温度

-40°C to +85°C

功率降级

> 40°C de-rate power by 2.5% / °C

运行湿度

5-95% RH (Non-Condensing)

防震测试（非运行状态）

50 G, 11 ms, 3 shocks for each direction

振动测试（非运行状态）

5-500 Hz, 2.09 Grms, 20 minute for each three axis

运行高度

Up to 5,000 meters (up to 16,400 feet or 106-54 kPa)

过压保护

150% max, Latch Mode

超负载/过电保护

180% max of rated load current, Hiccup Mode, (Non-Latching, Auto-Recovery)

过热保护

Latch Mode

短路保护

Hiccup Mode, (Non-Latching, Auto-Recovery)

防护等级

IP22

防震保护

Class I with C14 socket

MTBF

> 1 million Hours based on Telecordia SR-332 (at 115Vac, Max. load and 25°C Ambient)

预计最长使用寿命

5 years (50% load @ 115Vac, 25°C)

电气安全

IEC 62368-1
IEC 60950-1
GB4943.1-2011, GB9254-2008, GB17625.1-2012
PSE J60950-1(H29)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU
EN 60601-1: 2006 + A11: 2011 + A1: 2013 + A12: 2014 & EN 60601-1-2: 2015

医疗安全

IEC 60601-1 CB report, EN 60601-1
CAN/CSA-C22.2 No. 60601-1, ANSI/AAMI ES60601-1

电隔离

Input to Output : 4000 Vac
Input to PE3) : 1500 Vac
Output to PE3): 500 Vac

材料与部件

RoHS Directive 2011/65/EU & EU 2015/863 Compliant

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016,
Medical Devices Regulations 2002 (UK MDR 2002)

ITE Safety

IEC 62368-1
IEC 60950-1
GB4943.1, GB9254, GB17625.1
PSE J60950-1(H29)

排放

EN/BS EN 55011, EN/BS EN 55032 Class B
Compliance to FCC Title 47: Class B

谐波电流排放

IEC 61000-3-2 Meet Class A
