PMC-12V060W1NA

Panel Mount

PMC 系列

PMC-12V060W1NA

输出电压

12V

输出功率

60W

输出电流

输入电压范围

85-264Vac

尺寸 (L x W x H)

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

重量

0.28 kg (0.62 lb)

亮点与特色

全球通用交流输入电压，功率不降级
铝制外壳和底盘全方位防腐蚀
通过 NEC Class 2 / 限功率（LPS）认证
MTBF > 700,000 hrs Telcordia SR-332
大范围运行温度 -20°C 至 70°C
保形涂层（Class I，Div 2 危险场所标准）
通过 IEC/EN/UL 62368-1 认证

** 停用产品 **

取代机种: PMT-12V75W2BA

应用领域

Panel Mount

PMC 系列

PMC-12V060W1NA

亮点与特色

全球通用交流输入电压，功率不降级
铝制外壳和底盘全方位防腐蚀
通过 NEC Class 2 / 限功率（LPS）认证
MTBF > 700,000 hrs Telcordia SR-332
大范围运行温度 -20°C 至 70°C
保形涂层（Class I，Div 2 危险场所标准）
通过 IEC/EN/UL 62368-1 认证

** 停用产品 **

取代机种: PMT-12V75W2BA

输出电压

12V

输出功率

60W

输出电流

输入电压范围

85-264Vac

尺寸

128 x 97 x 38 mm

5.04” x 3.82” x 1.50”

重量

0.28 kg (0.62 lb)

应用领域

资源下载

Datasheet

Uploaded on 04-Aug-2021

Manual

Uploaded on 30-Nov-2020


Uploaded on 26-Dec-2023

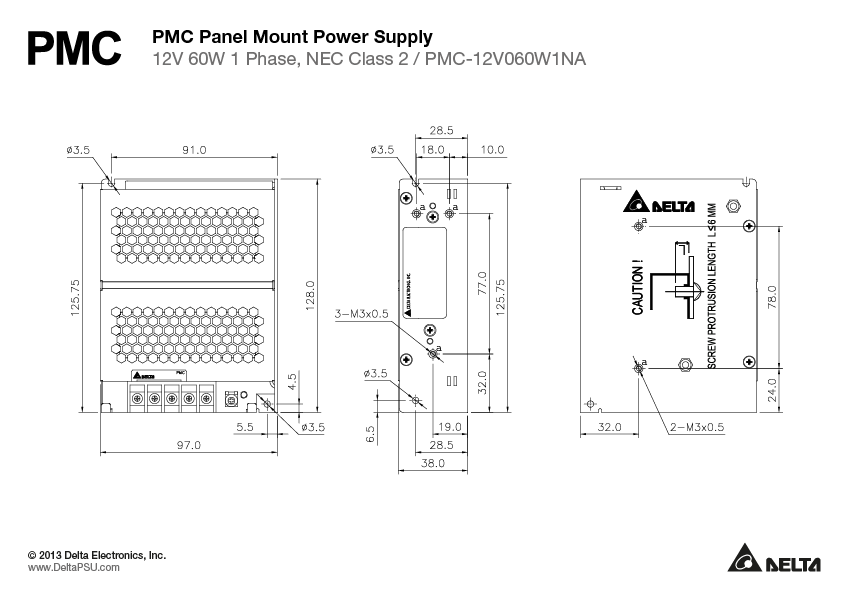

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

BIS

Uploaded on 04-Aug-2021

Uploaded on 30-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 04-Aug-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 30-Nov-2020

UKCA

Uploaded on 04-Aug-2021

Uploaded on 30-Nov-2020

GUI Software

Tech Specs

输出电流

输出电压

12V

输出电压调整范围

12-14Vdc

输出功率

60W

线电压调整率

< 0.5% typ. (@ 85-264Vac input, 100% load)

负载调整率

< 1% typ. (@ 85-264Vac input, 0-100% load)

纹波电压

< 100mVpp @ 25°C & 50°C
< 150mVpp @ -10°C & -20°C

开机时间

< 2500ms @ nominal input (100% load)

保持时间

> 15ms @ 115Vac,
> 80ms @ 230Vac (100% load)

动态回应

± 5% @ 0-100% load

电容性负载启动

5,000μF Max

升压时间

< 60ms @ nominal input (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

额定直流输入电压

125-250Vdc

直流输入电压范围

125-375Vdc

输入电流

< 1.35A @ 115Vac,
< 0.90A @ 230Vac

100% 负载效率

> 86.0% @ 115Vac,
> 87.0% @ 230Vac

最大涌入电流

< 50A @ 115Vac,
< 100A @ 230Vac

漏电流

< 1mA @ 240Vac

底座 / 外壳上盖 Aluminium
指示灯 Green LED DC OK
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） < 40dBA
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.28 kg (0.62 lb)	尺寸 128 x 97 x 38 mm 5.04” x 3.82” x 1.50”

运行温度

-20°C to +70°C

储存温度

-25°C to +85°C

功率降级

< -10°C de-rate power by 2.0%/°C,
> 50°C de-rate power by 2.5%/°C

运行湿度

< 95% RH

防震测试（非运行状态）

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 times per direction, 2 times in total

振动测试（非运行状态）

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

运行高度

0 to 3,000 Meters (9,840 ft)

污染程度

过压保护

< 17.6V, SELV Output, Non-Latching (Auto-Recovery)

超负载/过电保护

> 110-160% of rated load, Hicc-up Mode, Non-Latching (Auto-Recovery)

过热保护

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-Recovery)

短路保护

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

TUV Bauart: EN 60950-1, EN 62368-1, LPS, NEC Class 2
UL/cUL recognized to: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme to: IEC 60950-1, IEC 62368-1, LPS

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0KVac
Input to Ground: 1.5KVac
Output to Ground: 0.5KVac

安全特低电压

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

BIS

IS 13252-1

K 60950-1

排放

Generic Standards: CISPR 32, EN/BS EN 55032,
FCC Title 47: Class B (Class A for DC input)

抗扰度

Generic Standards: EN/BS EN 55024

电压波动和闪变

IEC/EN/BS EN 61000-3-3
