PMC-12V150W1BL?optional_model=PMC-12V150W1BL

Panel Mount

PMC 系列

PMC-12V150W1BL?optional_model=PMC-12V150W1BL

输出电压

12V

输出功率

150W

输出电流

12.5A

输入电压范围

85-264Vac

尺寸 (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.54 kg (1.19 lb)

亮点与特色

全球通用交流输入范围 85Vac 至 264Vac 功率不降级
铝制外壳和底盘全方位防腐蚀
MTBF > 700,000 hrs Telcordia SR-332
过压 / 过电 / 过热保护
符合 IP20 (PMC-12V150W1BJ)
通过 IEC/EN/UL 62368-1 认证

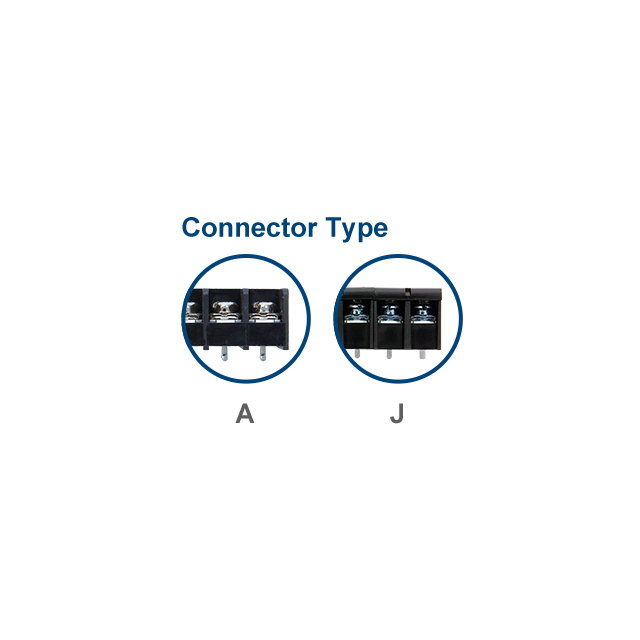

Optional Models

Model	Description
PMC-12V150W1BJ	IP20 connector
PMC-12V150W1BL	Front face connector

应用领域

资源下载

Datasheet

Uploaded on 17-May-2024


Uploaded on 17-May-2024

Mechanical Drawing

Uploaded on 26-May-2022

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

BIS

Uploaded on 17-May-2024

Uploaded on 30-Nov-2020

CCC

Uploaded on 30-Nov-2022

Uploaded on 30-Nov-2020

EAC

Uploaded on 22-Apr-2020

Uploaded on 11-Nov-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 30-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 11-Nov-2021

Uploaded on 30-Nov-2020

GUI Software

Tech Specs

输出电流

12.5A

输出电压

12V

输出电压调整范围

11-14Vdc

输出功率

150W

线电压调整率

< 0.5% typ. (@ 85-264Vac input, 100% load)

负载调整率

< 1% typ. (@ 85-264Vac input, 0 to 100% load)

纹波电压

< 100mVpp

开机时间

< 2000ms @ nominal input (100% load)

保持时间

> 30ms @ 115Vac & 230Vac (100% load)

动态回应

± 5% @ 85-264Vac input, 0-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz)

电容性负载启动

8,000µF Max

升压时间

< 30ms @ nominal input (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

额定直流输入电压

125-250Vdc

直流输入电压范围

125-375Vdc

输入电流

< 1.7A @ 115Vac,
< 1.0A @ 230Vac

100% 负载效率

> 87% @ 115Vac,
> 88% @ 230Vac

最大涌入电流

< 60A @ 115Vac,
< 120A @ 230Vac

功率因数

> 0.99 @ 115Vac,
> 0.90 @ 230Vac

漏电流

< 1mA @ 240Vac

底座 / 外壳上盖 Aluminium
指示灯 Green LED DC OK
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） <40dBA
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.54 kg (1.19 lb)	尺寸 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

运行温度

-10°C to +70°C

储存温度

-25°C to +85°C

功率降级

> 50°C de-rate power by 2.5% / °C

运行湿度

< 95% RH

防震测试（非运行状态）

IEC60068-2-27, 30G (300m/S²) for a duration of 18ms 1 times per direction, 6 times in total

振动测试（非运行状态）

IEC60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

过压保护

16V +10%/-5%, SELV output, Hiccup Mode, Non-Latching (Auto-Recovery).

超负载/过电保护

> 115% of rated load current, Hiccup Mode, Non-Latching (Auto-Recovery).

过热保护

< 75°C Ambient Temp@ 100% load, Non-Latching (Auto-Recovery).

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed).

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

SIQ Bauart: EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395), UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 62368-1
KC: K 60950-1
CCC: GB/T 9254, GB17625.1 and GB4943.1 BIS: IS 13252 (Part 1)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 1.5 Kvac
Output to Ground: 0.5 KVac

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

BIS

IEC 60950-1

K 60950-1

排放

CISPR32, EN/BS EN 55032, KN 32 FCC Title 47: Class B, GB9254

抗扰度

Generic Standards: EN/BS EN 55024, KN 35

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A; GB17625.1

电压波动和闪变

IEC/EN/BS EN 61000-3-3
