Delta PMC-24V600W1BA 24V 600W 25A Panel Mount PMC Series

资源下载

Datasheet

Uploaded on 05-Jul-2022

Manual

Uploaded on 11-Jun-2020


Uploaded on 26-Dec-2023

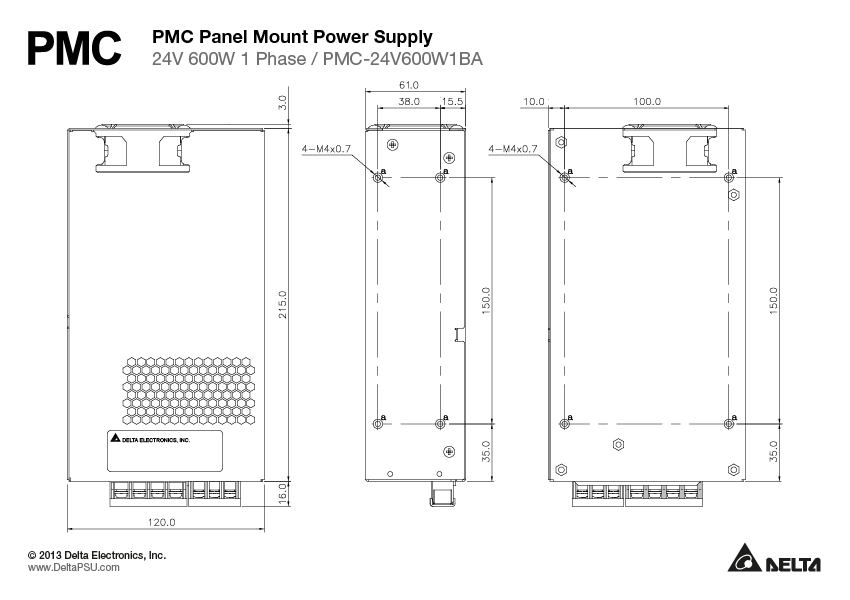

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 26-Nov-2020

Uploaded on 02-Dec-2022

EAC

Uploaded on 22-Apr-2020

Uploaded on 30-Jul-2021

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 26-Nov-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 30-Jul-2021

Uploaded on 26-Nov-2020

GUI Software

Tech Specs

输出电流

25A

输出电压

24V

输出电压调整范围

21.6-26.4Vdc

输出功率

600W

线电压调整率

< 0.4% typ. (@ 115 & 240Vac input, 100% load)

负载调整率

< 0.625% typ. (@ 115 & 240Vac input, 100% load)

纹波电压

< 180mVpp @ 0°C to 50°C,
< 240mVpp @ -20°C to 0°C

开机时间

< 800ms @ 230Vac (100% load)

保持时间

> 20ms @ 115Vac & 230Vac (100% load)

动态回应

± 5% @ 0-50% load and 50-100% load

电容性负载启动

10,000μF Max

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

额定直流输入电压

142-340Vdc

直流输入电压范围

120-370Vdc

输入电流

< 6.50A @ 115Vac,
< 3.20A @ 230Vac

100% 负载效率

> 86.0% @ 115Vac, > 89.0% @ 230Vac

涌入电流

< 20A @ 115Vac,
< 40A @ 230Vac

功率因数

> 0.99 @ 115Vac,
> 0.94 @ 230Vac

漏电流

< 1.5mA

底座 / 外壳上盖 SECC
指示灯 1.60 kg (3.53 lb) Green LED (DC OK)
冷却方式 Forced Cooling (Built-in Fan)
输入端 3 Pins (Rated 300V/20A)
输出端 4 Pins (Rated 300V/25A)
信号端 -
声压级（SPL） < 52dBA
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 1.60 kg (3.53 lb)	尺寸 215 x 120 x 61 mm 8.46” x 4.72” x 2.40”

运行温度

-20°C to +70°C

储存温度

-20°C to +75°C

功率降级

> 50°C de-rate power by 2.5% / °C,
< 115Vac de-rate power by 0.67% / 1V

运行湿度

20-90% RH

防震测试（非运行状态）

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 times per direction, 2 times in total

振动测试（非运行状态）

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); 20 min per axis for all X, Y, Z direction

污染程度

过压保护

27.6-33.6V, SELV Output, Latch-off Mode

超负载/过电保护

> 180% of rated load @ Vin ≥115Vac, Hicc-up Mode, Non-Latching (Auto-Recovery)

过热保护

< 70°C Surrounding Air Temperature @ 100% load, Latch-off Mode

短路保护

Hicc-up Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with Primary Earth connection

MTBF

> 300,000 hrs. as per Tel cordia SR-332

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

SIQ Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1, UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

安全特低电压

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

K 60950-1

排放

(CE & RE)
Generic Standards: CISPR 32, EN/BS EN 55032, CISPR 11, EN/BS EN 55011, FCC Title 47, VCCI*: Class B

抗扰度

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3
