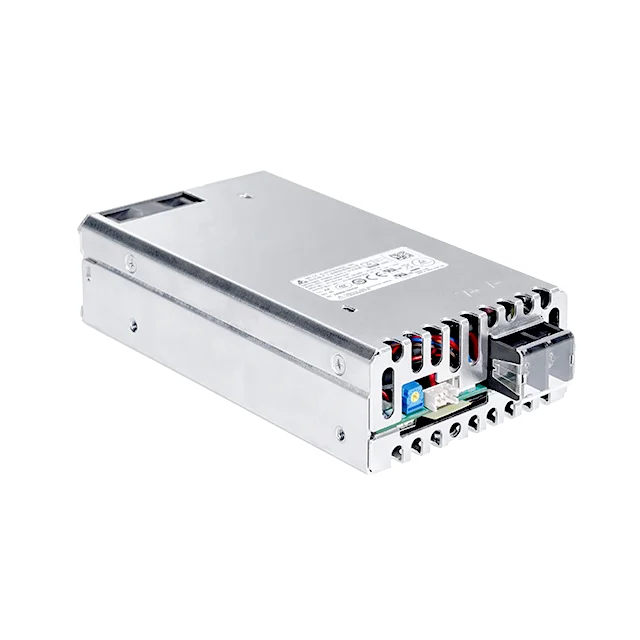

Delta PMC-24V600W1RW 24V 600W 25A Panel Mount PMC Series

资源下载

Datasheet

Uploaded on 27-Jun-2022

Manual

Uploaded on 26-Aug-2020


Uploaded on 19-Dec-2023

Mechanical Drawing

Uploaded on 23-Feb-2024

.DXF

Uploaded on 30-Nov-2021

.STP

Uploaded on 22-Jun-2021

认证

Uploaded on 18-Jan-2023

Uploaded on 21-May-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 13-Aug-2021

Uploaded on 11-Feb-2021

GUI Software

Tech Specs

输出电流

25A

输出电压

24V

输出电压调整范围

21.6-27.6Vdc

输出功率

600W

线电压调整率

± 0.4% typ. (@ 115 & 240Vac input, 100% load)

负载调整率

± 0.5% typ. (@115 & 240Vac input, 100% load)

纹波电压

< 150mVpp @ 0°C to 70°C,
180mVpp typ. @ -20°C to 0°C

开机时间

500ms typ. @ 230Vac (100% load)

保持时间

20ms typ. @ 115Vac & 230Vac (100% load)

动态回应

± 5% @ 50-100% load

电容性负载启动

10,000μF Max

升压时间

< 50ms @ 115Vac & 230Vac (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

6A typ. @ 115Vac, 3A typ. @ 230Vac

100% 负载效率

90.0% typ. @ 115Vac, 92.0% typ. @ 230Vac

涌入电流

40 A typ. @ 230 Vac

功率因数

0.99 typ. @ 100Vac, 0.97 typ. @ 200Vac

漏电流

< 0.75mA @ 240Vac

底座 / 外壳上盖 SGCC
指示灯 -
冷却方式 Built-in Fan
输入端 M3.5 x 3 Pins (Rated 300Vac/20A)
输出端 M4 x 4 Pins (Rated 300Vac/25A)
信号端 Signal Connector: JST S8B-PHDSS(LF)(SN) Mating connector: JST PHDR-08VS or equivalent
声压级（SPL） < 60dBA
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 1.4 kg (3.09 lb)	尺寸 190 x 120 x 61 mm 7.48” x 4.72” x 2.40”

振动测试（运行状态）

IEC60068‐2‐6, Sine Wave: 10Hz to 55Hz @19.6m/s2(2G peak);
10min per cycle, 60min per axis for all X,Y,Z direction

防震测试（运行状态）

IEC60068‐2‐27, Half Sine Wave: 10G for a duration of 11ms, 3 shocks for each 3 directions

运行温度

-20°C to +70°C

储存温度

-30°C to +75°C

功率降级

> 50°C de-rate power by 2.5% / °C
< 110Vac de-rate power by 0.8% / 1V

运行湿度

20-95% RH

防震测试（非运行状态）

IEC60068‐2‐27, Half Sine Wave: 50G for a duration of 11ms, 3 shocks for each 3 directions

振动测试（非运行状态）

IEC60068‐2‐6, Random: 5Hz to 500Hz (2.09Grms);
20min per axis for all X,Y,Z direction

运行高度

5,000 Meters

污染程度

过压类别

II (Compliance to EN 62477-1 OVC III with 2000 meters altitude)

过压保护

27.6-33.6V, SELV Output, Latch-off Mode

超负载/过电保护

105~160%; Constant current limit with automatic recovery

过热保护

Latch-off Mode

短路保护

Hiccup Mode, Non-Latching (Auto-Recovery when the fault is removed)

防震保护

Class I with PE connection

MTBF

> 700,000 hrs as per Telcordia SR-332
I/P: 115Vac, O/P: 100% Load, Ta: 25°C)

预计最长使用寿命

10 years (115 Vac, 50% load @ 40°C)

电气安全

TUV Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 N 60950-1 (File No. E131881),
UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E131881)
CB scheme: IEC 60950-1, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0KVac
Input to Ground: 1.8KVac
Output to Ground: 0.5KVac

安全特低电压

SELV

UKCA

In conformance with Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016

排放

CISPR 32, EN/BS EN 55032
Compliance to FCC Title 47, VCCI, EN 55011 : Class B

抗扰度

EN/BS EN 55035, KN35
Compliance to EN 61000-6-2

谐波电流排放

IEC/EN/BS EN 61000-3-2 Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3

ESD 抗扰度

IEC 61000-4-2: Level 4 Criteria A
Air Discharge: 15kV
Contact Discharge: 8kV

EFT

IEC 61000-4-4: Level 3 Criteria A
2kV

电涌

IEC 61000-4-5: Level 4 Criteria A
Common Mode: 4kV
Differential Mode: 2kV

传导抗扰度

IEC 61000-4-6 : Level 3 Criteria A
150kHz-80MHz, 10Vrms

磁场

IEC 61000-4-8 : Level 4 Criteria A
30A/Meter

电压骤降

IEC 61000-4-11 :
0% residual; 1 cycle, Criteria B
40% residual; 10 cycle, Criteria C
70% residual; 25 cycle, Criteria C
