PMC-DSPV100W1A

Panel Mount

PMC 系列

PMC-DSPV100W1A

输出电压

24V,5V

输出功率

100W

输出电流

2.7A,7A

输入电压范围

85-264Vac

尺寸 (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.52 kg (1.15 lb)

亮点与特色

Universal AC input voltage range
Power will not de-rate for the entire input voltage range
Full corrosion resistant aluminium casing
Conforms to harmonics current IEC/EN 61000-3-2, Class A
High MTBF >700,000 hrs. as per Telcordia SR-332
Safety approval according to IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and EMI to EN 55022, Class B

应用领域

资源下载

Datasheet

Uploaded on 01-Nov-2021

Manual

Uploaded on 22-Apr-2020


Uploaded on 26-Dec-2023

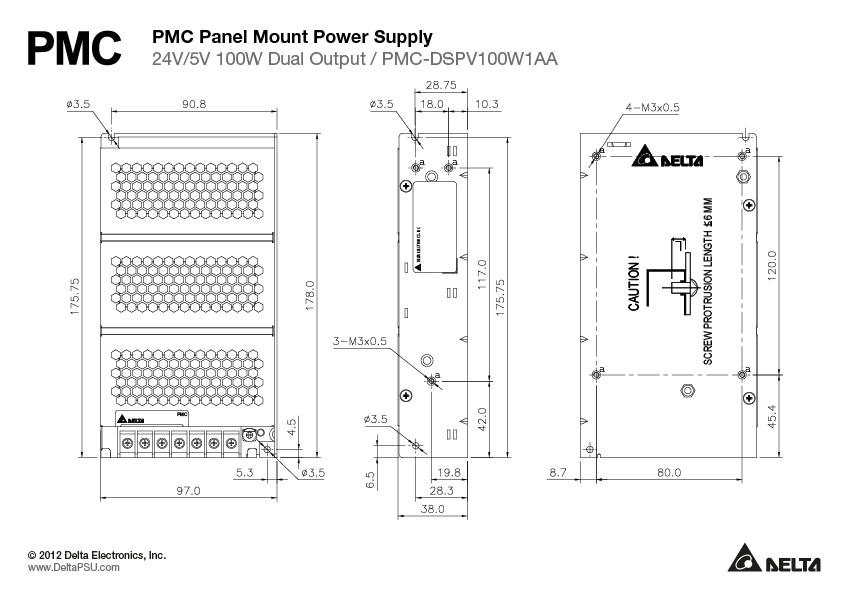

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

Uploaded on 02-Dec-2020

CCC

Uploaded on 31-Mar-2021

Uploaded on 02-Dec-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

TSCA

Uploaded on 15-Nov-2023

TUV

Uploaded on 02-Dec-2020

UKCA

Uploaded on 01-Nov-2021

Uploaded on 02-Dec-2020

GUI Software

Tech Specs

输出电流

2.7A,7A

输出电压

24V,5V

输出电压调整范围

V1 : 22.8-26.4Vdc

输出功率

100W

线电压调整率

< 0.5% typ. (@ 85-264Vac input, 100% load)

负载调整率

< 1% Typical (@ 85 to 264Vac input, V1: 100% rated load and V2: 60% rated load and vice versa)

纹波电压

V1: <200mVpp, V2: <80mVpp

开机时间

< 1000ms @ nominal input (100% load)

保持时间

> 15ms @ 115Vac,
> 80ms @ 230Vac (100% load)

动态回应

± 5% @ V1: 0

电容性负载启动

V1: 4,000JF Max

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

额定直流输入电压

125-250Vdc

直流输入电压范围

125-375Vdc

输入电流

< 2.0A @ 115Vac, < 1.1A @ 230Vac

100% 负载效率

> 84% @ 115Vac,
> 86% @ 230Vac

最大涌入电流

< 50A @ 115Vac, < 100A @ 230Vac

功率因数

Conform to EN61000-3-2, Class A

漏电流

< 1mA @ 240Vac

底座 / 外壳上盖 Aluminium
指示灯 -
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.52 kg (1.15 lb)	尺寸 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

运行温度

-10°C to +70°C

储存温度

-25°C to +85°C

功率降级

> 50°C de-rate power by 2.5% /°C

运行湿度

< 95% RH

防震测试（非运行状态）

IEC60068

振动测试（非运行状态）

IEC60068

过压保护

V1: < 32.4V, V2: 6.75V, Hiccup Mode, Non-Latching (Auto recovery)

超负载/过电保护

OLP: > 150% of total rated output power, Hiccup Mode, Non-Latching (Auto recovery)

过热保护

< 75°C Surrounding Air Temperature @ 100% load,
Non-Latching (Auto-recovery).

短路保护

Hiccup Mode, Non-Latching
(Auto-recovery when the fault is removed)

防护等级

IPX0

MTBF

> 700,000 hrs. per Telcordia SR-332

电气安全

TUV Bauart: EN 60950-1, EN 62368-1
cRUus: UL 60950-1 and CSA C22.2 No. 60950-1
UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB4943

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

Generic Standards: CISPR32, EN/BS EN 55032, FCC Title 47: Class B, GB 9254

抗扰度

Generic Standards: EN/BS EN 55024
