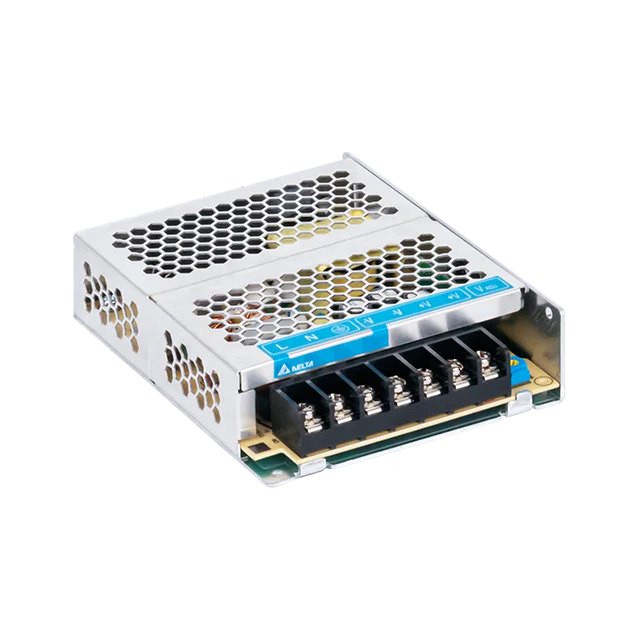

Panel Mount

PMH 系列

PMH-24V100WCMT?optional_model=PMH-24V100WCMT

输出电压

24V

输出功率

91W

输出电流

3.8A

输入电压范围

85-264Vac

尺寸 (L x W x H)

129 x 97 x 30 mm

5.08” x 3.82” x 1.18”

重量

0.31 kg (0.68 lb)

亮点与特色

通过家用电器认证、污染防护等级第 3 级，达到 IEC/ EN 60335-1、IEC/EN 61558-1 及 IEC/EN 61558-2-16 标准
全球通用交流输入电压
抗输入电压浪涌 300Vac 可达 7 秒
-25°C 至 +50°C 全功率运行 @ 5000 米或 16400 英尺海拔高度
全防腐蚀铝制外壳
空载损耗 < 0.3W @ 115Vac
低漏电流 < 0.75mA

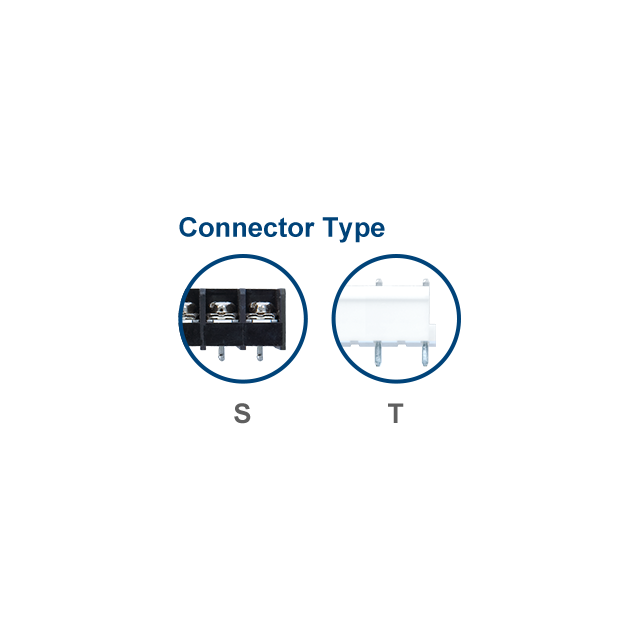

多种连接器选项：IP20、朝前型端子台及线束型连接器
通过 IEC/EN/UL 62368-1 认证

** Discontinued Product **
PMH-24V100WCMU, PMH-24V100WCMV
Recommended Model: PMH-24V100WCMS, PMH-24V100WCMT

Optional Models

Model	Description
PMH-24V100WCMT	Low profile, NEC Class 2, harness connector

应用领域

Panel Mount

PMH 系列

PMH-24V100WCMT?optional_model=PMH-24V100WCMT

亮点与特色

通过家用电器认证、污染防护等级第 3 级，达到 IEC/ EN 60335-1、IEC/EN 61558-1 及 IEC/EN 61558-2-16 标准
全球通用交流输入电压
抗输入电压浪涌 300Vac 可达 7 秒
-25°C 至 +50°C 全功率运行 @ 5000 米或 16400 英尺海拔高度
全防腐蚀铝制外壳
空载损耗 < 0.3W @ 115Vac
低漏电流 < 0.75mA
多种连接器选项：IP20、朝前型端子台及线束型连接器
通过 IEC/EN/UL 62368-1 认证

** Discontinued Product **
PMH-24V100WCMU, PMH-24V100WCMV
Recommended Model: PMH-24V100WCMS, PMH-24V100WCMT

输出电压

24V

输出功率

91W

输出电流

3.8A

输入电压范围

85-264Vac

尺寸

129 x 97 x 30 mm

5.08” x 3.82” x 1.18”

重量

0.31 kg (0.68 lb)

应用领域

Optional Models

Model	Description
PMH-24V100WCMT	Low profile, NEC Class 2, harness connector

资源下载

Datasheet

Uploaded on 18-Apr-2022

Manual

Uploaded on 20-May-2022


Uploaded on 13-Apr-2024

Mechanical Drawing

Uploaded on 18-Apr-2022

.DXF

Uploaded on 18-Apr-2022

.STP

Uploaded on 18-Apr-2022

认证

Uploaded on 03-Mar-2023

Uploaded on 22-Apr-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 22-Apr-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 03-Nov-2021

Uploaded on 25-Nov-2020

GUI Software

Tech Specs

输出电流

3.8A

输出电压

24V

输出电压调整范围

22-24Vdc

输出功率

91W

线电压调整率

< 0.5% (@ 100-264Vac input, 100% load)

负载调整率

< 1.0% (@ 100-264Vac input, 0-100% load)

纹波电压

< 150mVpp

开机时间

< 2500ms @ 115Vac (100% load),
< 1500ms @ 230Vac (100% load)

保持时间

> 10ms @ 115Vac, > 50ms @ 230Vac (100% load)

动态回应

± 5% @ 100-264Vac input, 0-50%, 0-100%, 50-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1kHz)

电容性负载启动

3,000μF Max

升压时间

< 100ms @ nominal input (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

直流输入电压范围

120-375Vdc

输入电流

< 1.90A @ 115Vac, < 1.20A @ 230Vac

100% 负载效率

> 86% @115Vac, > 88% @ 230Vac

最大涌入电流

(Cold Start)
< 25A @ 115Vac, < 50A @ 230Vac

漏电流

< 0.75mA @ 240Vac

最大功率损耗

No Load: < 0.3W @ 115Vac, < 0.5W @ 230Vac
100% Load: < 17.0W @ 115Vac, < 15.0W @ 230Vac

底座 / 外壳上盖 Aluminium
指示灯 Green LED (DC OK)
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.31 kg (0.68 lb)	尺寸 129 x 97 x 30 mm 5.08” x 3.82” x 1.18”

运行温度

-30°C to +70°C

储存温度

-40°C to +85°C

功率降级

Temperature:
120Vac: < -25°C de-rate power by 5.0% / °C
120Vac and 240Vac: > 50°C de-rate power by 2.0% / °C
Input Voltage:
< 100Vac de-rate power by 1.33%/°C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,3 times per direction, 9 times in total

振动测试（非运行状态）

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

过压保护

< 35V, SELV Output, Latch mode

超负载/过电保护

105~130% of rated load current, Hiccup mode, Non-Latching (Auto-Recovery)

过热保护

< 75°C Surrounding Air Temperature @ 100% load, Latch mode

短路保护

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

防护等级

IP20 (PMH-24V100WC☐U)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

SIQ Bauart: EN 60950-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1(File No. E191395)
CB scheme: IEC 60950-1, IEC 60335-1, IEC 61558-1, IEC 61558-2-16, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 4.0KVac
Input to Ground: 2.0KVac
Output to Ground: 1.0KVdc

安全特低电压

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

Generic Standards: EN/BS EN 55011, EN/BS EN 55032, CISPR 32, FCC Title 47: Class B, EN 55014-1, EN 61000-6-3

抗扰度

Generic Standards: EN/BS EN 55024, EN/BS EN 61000-6-2, EN 55014-2

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3

通用用途之部件供电

EN 61204-3
