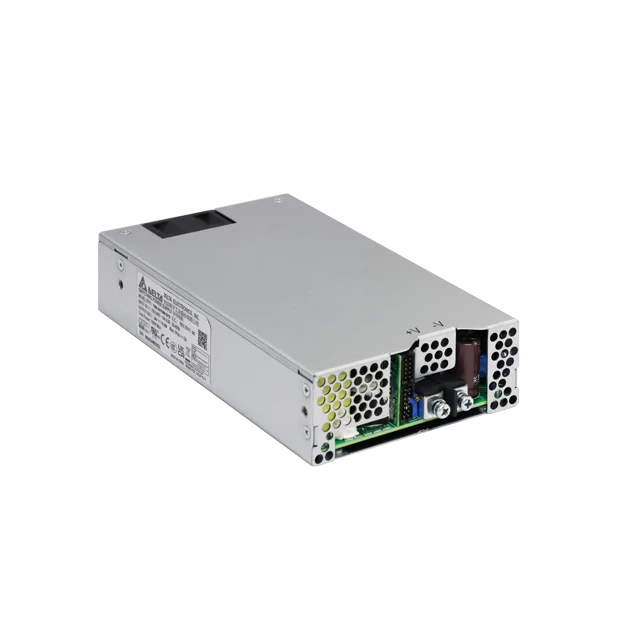

PMH-24V150WCDT?optional_model=PMH-24V150WCDT

Panel Mount

PMH 系列

PMH-24V150WCDT?optional_model=PMH-24V150WCDT

输出电压

24V

输出功率

150W

输出电流

6.25A

输入电压范围

85-264Vac

尺寸 (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.56 Kg (1.23 lb)

亮点与特色

IEC/EN 60335-1、IEC/EN 61558-1 及 IEC/EN 61558-2-16家用电器认证
全球通用交流输入电压
-20°C 至 +50°C 全功率运行 @ 5000米或16400英尺海拔高度
全防腐蚀铝制机壳
平均故障运行时间（MTBF） >700,000 小时（Telcordia SR-332标准）
多种连接器选项：IP20、朝前型端子台及线束型连接器
符合IEC/EN/UL 62368-1认证

** Discontinued Product **

PMH-24V150WCDJ, PMH-24V150WCDL,PMH-24V150WCDU, PMH-24V150WCDV

Replaced by : PMH-24V150WCDA, PMH-24V150WCDH, PMH-24V150WCDS, PMH-24V150WCDT

Optional Models

Model	Description
PMH-24V150WCDA	Terminal block, output non-isolated to PE
PMH-24V150WCDH	Harness connector, output non-isolated to PE
PMH-24V150WCDT	Harness connector

应用领域

Panel Mount

PMH 系列

PMH-24V150WCDT?optional_model=PMH-24V150WCDT

亮点与特色

IEC/EN 60335-1、IEC/EN 61558-1 及 IEC/EN 61558-2-16家用电器认证
全球通用交流输入电压
-20°C 至 +50°C 全功率运行 @ 5000米或16400英尺海拔高度
全防腐蚀铝制机壳
平均故障运行时间（MTBF） >700,000 小时（Telcordia SR-332标准）
多种连接器选项：IP20、朝前型端子台及线束型连接器
符合IEC/EN/UL 62368-1认证

** Discontinued Product **

PMH-24V150WCDJ, PMH-24V150WCDL,PMH-24V150WCDU, PMH-24V150WCDV

Replaced by : PMH-24V150WCDA, PMH-24V150WCDH, PMH-24V150WCDS, PMH-24V150WCDT

输出电压

24V

输出功率

150W

输出电流

6.25A

输入电压范围

85-264Vac

尺寸

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.56 Kg (1.23 lb)

应用领域

Optional Models

Model	Description
PMH-24V150WCDA	Terminal block, output non-isolated to PE
PMH-24V150WCDH	Harness connector, output non-isolated to PE
PMH-24V150WCDT	Harness connector

资源下载

Datasheet

Uploaded on 09-Apr-2022

Manual

Uploaded on 20-May-2022


Uploaded on 22-Dec-2023

Mechanical Drawing

Uploaded on 09-Apr-2022

.DXF

Uploaded on 09-Apr-2022

.STP

Uploaded on 09-Apr-2022

认证

Uploaded on 08-Jan-2021

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 08-Jan-2021

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 29-Jul-2021

Uploaded on 08-Jan-2021

GUI Software

Tech Specs

输出电流

6.25A

输出电压

24V

输出电压调整范围

22-28Vdc

输出功率

150W

线电压调整率

< 0.5% (@ 85-264Vac input, 100% load)

负载调整率

< 0.5% (@ 85-264Vac input, 0-100% load)

纹波电压

< 100mVpp

开机时间

100Vac < 2200ms (@100Vac -20°C to 70°C) &
< 2500ms (@100Vac < -20°C to -30°C)
240Vac < 1000ms (@240Vac -30°C to 70°C)

保持时间

> 40ms @ 115Vac, > 50ms 230Vac (100% load)

动态回应

± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1KHz)

电容性负载启动

8,000μF Max (@ > -20°C, 85-264Vac input & @ ≤ -20°C, 100-264Vac input)

升压时间

< 35ms @ nominal input (100% load)

额定输入电压

100-240Vac

输入电压范围

85-264Vac

额定输入频率

50-60Hz

输入频率范围

47-63Hz

直流输入电压范围

120-375Vdc

输入电流

< 1.60A @ 115Vac, < 0.90A @ 230Vac

100% 负载效率

> 89.0% @ 115Vac, > 90.5% @ 230Vac

最大涌入电流

(Cold Start)
< 30A @ 115Vac, < 60A @ 230Vac

功率因数

> 0.98 @ 115Vac, > 0.89 @ 230Vac

漏电流

< 0.75mA @ 240Vac

最大功率损耗

No Load: < 0.08W @ 115Vac & < 1.0W @ 230Vac
100% Load: 18.5W typ. @ 115Vac & 15.8W typ. @ 230Vac

底座 / 外壳上盖 Aluminium
指示灯 Green LED (DC OK)
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.56 Kg (1.23 lb)	尺寸 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

运行温度

-30°C to +70°C

储存温度

-30°C to +85°C

功率降级

-20°C to -30°C de-rate power by 2.0% / °C
> 50°C de-rate power by 2.5% / °C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,1 times per direction, 2 times in total

振动测试（非运行状态）

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

碰撞试验（运行状态）

IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1000 times per direction, 6000 times in total

过压类别

过压保护

28.8-35.2V range, Hiccup Mode, Non-Latching (Auto-Recovery)

超负载/过电保护

> 120% of rated load current, Hiccup Mode, Non-Latching (Auto recovery)

过热保护

< 75°C Surrounding Air Temperature @ 100% load, Non-Latching (Auto-recovery)

短路保护

Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)

防护等级

IP20 (PMH-24V150WC☐U and PMH-24V150WC☐J)

防震保护

Class I with Primary Earth connection

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, O/P: 100% load, Ta: 25°C

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

SIQ Bauart: EN 60950-1, EN 60335-1, EN 61558-1, EN 61558-2-16, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1 (File No. E191395) UL 62368-1 and CSA C22.2 No. 62368-1 (File No. E191395)
CB scheme: IEC 60950-1, IEC 60335-1, IEC 61558-1, IEC 61558-2-16, IEC 62368-1

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 4.5KVac
Input to Ground: 1.5KVac

Output to Ground:
Output non-isolated to PE (common pins connect to PE) (PMH-24V150WC☐A, PMH-24V150WC☐J, PMH-24V150WC☐L, PMH-24V150WC☐H)
1.5KVdc (Output isolated to PE) (PMH-24V150WC☐S, PMH-24V150WC☐U, PMH-24V150WC☐V, PMH-24V150WC☐T)

安全特低电压

Output non-isolated to PE: PELV (EN 60335), SELV (IEC 60950)
Output isolated to PE: SELV (EN 60335), SELV (IEC 60950)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

排放

Generic Standards:
EN 55011, CISPR 32, EN/BS EN 55032, EN/BS EN 55014-1, EN/BS EN 61000-6-3, FCC Title 47: Class B

抗扰度

Generic Standards:
EN/BS EN 55024, EN/BS EN 61000-6-2, EN/BS EN 55014-2

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A

电压波动和闪变

IEC/EN/BS EN 61000-3-3
