PMU-13V155WLBA?optional_model=PMU-13V155WLBA

Panel Mount

PMU 系列

PMU-13V155WLBA?optional_model=PMU-13V155WLBA

输出电压

13.8V

输出功率

151W

输出电流

9.5A,1.5A

输入电压范围

90-132Vac, 180-264Vac (Selectable by Switch)

尺寸 (L x W x H)

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.60 kg (1.32 lb)

亮点与特色

AC input voltage range selectable by switch
流正常状态 LED 指示灯（绿色）、电池接反报警（红色）
遇交流断电无间隔切换至电池操作
符合谐波电流 IEC/EN 61000-3-2, Class A 标准
平均无故障运行时间 (MTBF) > 700,000 小时，Telcordia SR-332 标准
交流正常、直流正常及低电池信号监控
过压 / 过流 / 过温 / 短路保护
缓冲（放电）模式下内置式过流及短路保
通过 IEC/EN/UL 62368-1 认证

Optional Models

Model	Description
PMU-13V155WCBA	Enclosed, without Signal
PMU-13V155WLCA	L Frame
PMU-13V155WLBA	L Frame, without Signal

应用领域

Panel Mount

PMU 系列

PMU-13V155WLBA?optional_model=PMU-13V155WLBA

亮点与特色

AC input voltage range selectable by switch
流正常状态 LED 指示灯（绿色）、电池接反报警（红色）
遇交流断电无间隔切换至电池操作
符合谐波电流 IEC/EN 61000-3-2, Class A 标准
平均无故障运行时间 (MTBF) > 700,000 小时，Telcordia SR-332 标准
交流正常、直流正常及低电池信号监控
过压 / 过流 / 过温 / 短路保护
缓冲（放电）模式下内置式过流及短路保
通过 IEC/EN/UL 62368-1 认证

输出电压

13.8V

输出功率

151W

输出电流

9.5A,1.5A

输入电压范围

90-132Vac, 180-264Vac (Selectable by Switch)

尺寸

178 x 97 x 38 mm

7.01” x 3.82” x 1.50”

重量

0.60 kg (1.32 lb)

应用领域

Optional Models

Model	Description
PMU-13V155WCBA	Enclosed, without Signal
PMU-13V155WLCA	L Frame
PMU-13V155WLBA	L Frame, without Signal

资源下载

Datasheet

Uploaded on 17-May-2024

Manual

Uploaded on 26-Aug-2021


Uploaded on 17-May-2024

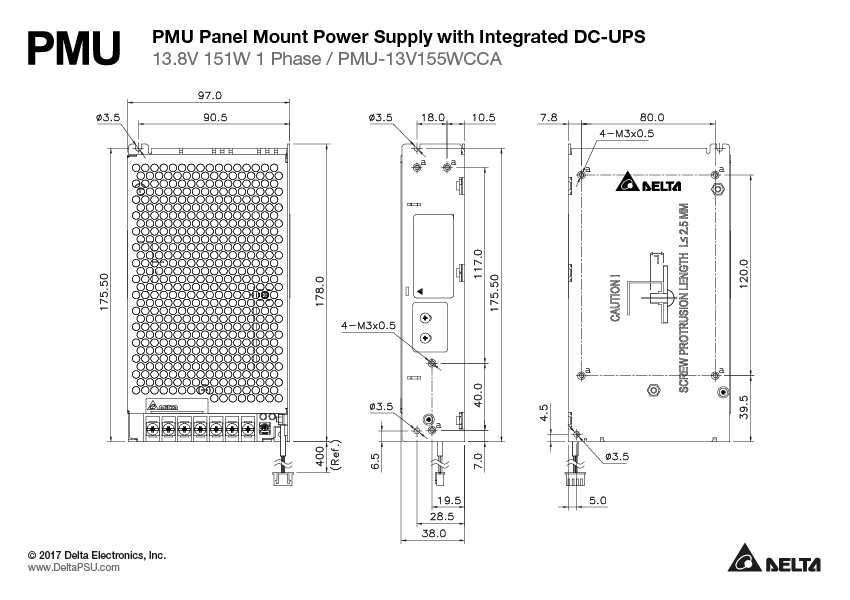

Mechanical Drawing

Uploaded on 22-Apr-2020

.DXF

Uploaded on 22-Apr-2020

.STP

Uploaded on 22-Apr-2020

认证

BIS

Uploaded on 17-May-2024

Uploaded on 07-Dec-2020

CCC

Uploaded on 17-Feb-2022

Uploaded on 07-Dec-2020

EAC

Uploaded on 22-Apr-2020

REACH

Uploaded on 09-May-2024

RoHS

Uploaded on 29-May-2024

SIQ

Uploaded on 07-Dec-2020

TSCA

Uploaded on 15-Nov-2023

UKCA

Uploaded on 03-Nov-2021

Uploaded on 07-Dec-2020

GUI Software

Tech Specs

输出电流

9.5A,1.5A

输出电压

13.8V

输出电压调整范围

12-14Vdc

输出功率

151W

线电压调整率

< 0.5% (90-132Vac @ 90% load,180-264Vac @ 100% load)

负载调整率

< 1.0% (90-132Vac @ 0-90% load,180-264Vac @ 0-100% load)

纹波电压

< 150mVpp @ 0°C to -20°C
< 100mVpp @ > 0°C to 70°C

开机时间

< 1,000ms (115Vac @ 90% load, 230Vac @ 100% load)

保持时间

> 20ms (115Vac @ 90% load, 230Vac @ 100% load)

动态回应

± 5%, 0-50% & 50-100% & 10-100% load
(Slew Rate: 0.1A/μS, 50% duty cycle @ 5Hz to 1KHz)

电容性负载启动

3,600μF at 13.8V/11A

输入输出间电压骤降

Normal Mode: 0.5V typ.
Buffering Mode: 0.2V typ.

升压时间

< 50ms (100Vac @ 90% load, 200Vac @ 100% load)

额定输入电压

100-120Vac, 200-240Vac (Selectable by Switch)

输入电压范围

90-132Vac, 180-264Vac (Selectable by Switch)

额定输入频率

50-60Hz

输入频率范围

47-63Hz

输入电流

< 2.5A @ 115Vac, < 1.5A @ 230Vac

100% 负载效率

> 85.0% @ 115Vac
> 86.0% @ 230Vac

最大涌入电流

(Cold Start)
< 25A @ 115Vac & 230Vac

漏电流

< 0.5mA @ 264Vac

最大功率损耗

No Load: < 0.4W @ 115Vac, < 0.5W @ 230Vac
100% Load: < 23W @ 115Vac & 230Vac

底座 / 外壳上盖 AL / SGCC
指示灯 LED Indicator: Green LED: DC OK Red LED: Battery Connected in Reverse Polarity
冷却方式 Convection
输入端 -
输出端 -
信号端 -
声压级（SPL） -
输入/输出端 -
信号 -
安装导轨 -
电线 -
保护结构 -
端子台 -
重量 0.60 kg (1.32 lb)	尺寸 178 x 97 x 38 mm 7.01” x 3.82” x 1.50”

运行温度

-20°C to +70°C

储存温度

-40°C to +85°C

功率降级

I/P: 90-132Vac:
< 0°C to -20°C de-rate power by 2.25% / °C
50°C to 70°C de-rate power by 2.25% / °C
I/P: 180-264Vac:
< 0°C to -20°C de-rate power by 2.5% / °C
50°C to 70°C de-rate power by 2.5% / °C

运行湿度

5 to 95% RH (Non-Condensing)

防震测试（非运行状态）

IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms,3 times per direction, 9 times in total

振动测试（非运行状态）

IEC 60068-2-6, 10Hz to 150Hz @ 50m/S² (5G peak); displacement of 0.35mm; 20 min per axis for all X, Y, Z direction

运行高度

0 to 5,000 Meters (16,400 ft.)

污染程度

碰撞试验（运行状态）

IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1000 times per direction, 3000 times in total

过压类别

过压保护

V1: <18.5V, SELV Output, Hiccup mode, Non-latching (auto-recovery)
B+: 15Vdc Max will not cause damage to the unit

超负载/过电保护

Normal Mode: 105-150% of rated load current, Hiccup mode, Non-Latching (Auto recovery)
Buffering Mode: 11.5-19.0A, Latch mode

过热保护

Latch mode

短路保护

Normal Mode: Hiccup Mode, Non-Latching (Auto-recovery when the fault is removed)
Buffering Mode: Latch mode

防震保护

Class I with Primary Earth connection

电池极性保护

Yes (RED LED = ON)

电池电压保护错误

Yes, 15Vdc Max will not cause damage to the unit

深度放电保护

9.0V ± 0.5V

MTBF

> 700,000 hrs. as per Telcordia SR-332
I/P: 115Vac, Ta: 25°C
O/P: 13.8V/9.9A for 13V model and 27.6V/4.95A for 27V model

预计最长使用寿命

10 years (115Vac & 230Vac, 50% load @ 40°C)

电气安全

SIQ Bauart: EN 60950-1, EN 62368-1
UL/cUL recognized: UL 60950-1 and CSA C22.2 No. 60950-1, UL 62368-1 and CSA C22.2 No. 62368-1
CB scheme: IEC 60950-1, IEC 62368-1
CCC: GB/T 9254, GB 17625.1 and GB 4943.1
BIS: IS 13252 (Part 1)

In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU

电隔离

Input to Output: 3.0 KVac
Input to Ground: 1.5 KVac
Output to Ground: 0.5 KVac

安全特低电压

SELV (IEC 60950-1)

UKCA

In conformance with Electrical Equipment (Safety) Regulations 2016 No. 1011 and
The Electromagnetic Compatibility Regulations 2016 No. 1091

BIS

IEC 60950-1, IS 13252 (Part 1)

排放

Generic Standards: CISPR 22, CISPR 32, EN/BS EN 55022, EN/BS EN 55032, FCC Title 47: Class B

抗扰度

Generic Standards: EN/BS EN 55024

谐波电流排放

IEC/EN/BS EN 61000-3-2, Class A, GB17625.1

电压波动和闪变

IEC/EN/BS EN 61000-3-3

额定电池电压

(Batteries not included with power supply)
12Vdc
SLA Sealed lead acid battery

电池电压范围

Continuously Operating: 11.0 to 13.8Vdc (nominal at 12V)
Maximum Allowed Voltage: 16Vdc Max
Minimum Voltage: 8.5Vdc

电池容量

3.3AH/ 7AH/ 12AH/ 15AH

电池充电模式

(Normal Mode)
CC-CV mode (constant current-constant voltage) at 0 to 1.5A

充电电压结束

The unit always charges battery to a fixed voltage value
